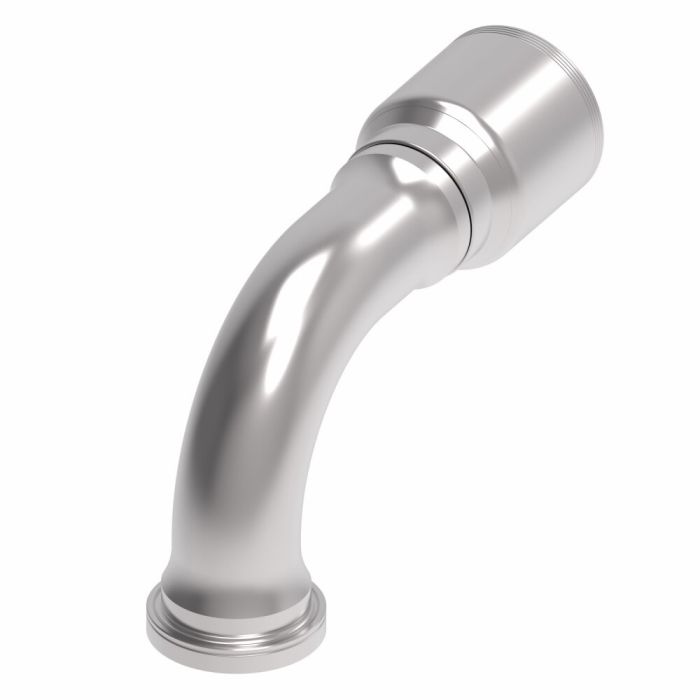

The Split Flange Code 62 90 from Danfoss Power Solutions (II LLC Aeroquip) ensures optimal performance with innovative design tailored for demanding applications. Incorporating Dura-Kote plating this fitting offers unmatched corrosion resistance.
This fitting is engineered to extend hose assembly life certified to SAE J1176 standards and suitable for a variety of industrial settings.
Manufactured from robust carbon steel the fitting features an end type 1 flanged and end type 2 line/hose/tube connection supporting a hose dash size of -32. The drop dimension is 5.4300 inches and its width is 3.39 inches.
Supplier Part Number: 4S32FHB32
Loading related products…
Specifications
Alternate Part Numbers
Alternate Part NumberMI-08051652, Alternate Part Number MINO-00015X01275
Certifications
SAE J1176
Drop Dimension
5.43
Brand
Danfoss Power Solutions (II LLC Aeroquip)
Brand
Aeroquip
Pack Size
1.00
UOM
EA
End Type 1
Flanged
End Type 2
Line/Hose/Tube
Features
Dura-Kote plating for superior corrosion resistance|Innovative design to deliver performance and maximum uptime|System engineered to extend hose assembly life
Hose Dash Size
-32
ICC
Hose Fittings
Item Type
Fitting Assembly
Language
English
Net Pack Quantity Units
EA
NMFC
50
Product Material
Carbon Steel
Product Width
3.39
Sub Brand
None
Supplier Part Number
4S32FHB32
Product Weight
9.14 lbs
Product Questions & Answers (2)
Question by: Frank B on Jan 1, 2026, 10:50 AM
does this fitting work with -32 hose or is that just the flange size
Answer by: Customer Support on Jan 2, 2026, 6:22 PM
The -32 refers to the hose dash size, so yes, it matches up with -32 hose assemblies. One end connects to the flange and the other end handles the line, hose, or tube connection. The 90-degree angle is built into the fitting itself, so there's no need for a separate elbow adapter in tight routing situations.
Question by: Janet B on Jul 27, 2025, 9:02 AM
Will this flange fitting hold up to a good bit of vibration?
Answer by: Customer Support on Jul 28, 2025, 9:44 AM
Built with Dura-Kote plating and carbon steel, this fitting offers superior corrosion resistance and is designed to extend hose assembly life, which contributes to its durability in demanding environments.
