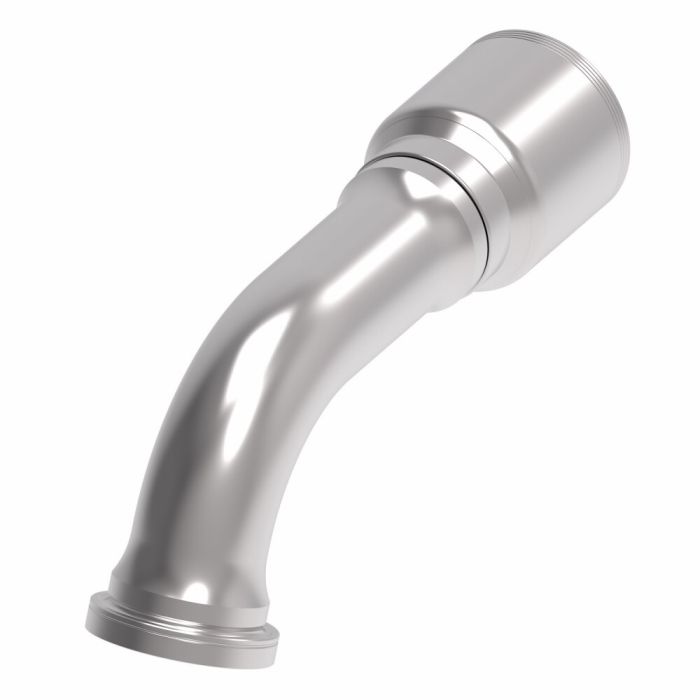

Designed for high-pressure hydraulic hose assemblies, the Danfoss / Eaton Aeroquip 4-Wire Spiral TTC Fitting is a carbon steel crimp fitting configured with a SAE Code 62 flanged end and a 67.5-degree elbow orientation. The -32 hose dash size accommodates large-bore spiral hose applications where robust, leak-resistant connections are critical.
Dura-Kote plating provides corrosion resistance suited to demanding industrial environments. The fitting is system-engineered to extend hose assembly service life and is certified to SAE J1176. The flanged end type pairs with line, hose, or tube on the opposing end, making it well-suited for high-flow hydraulic circuits requiring angled routing at the connection point.
SKU: 4S32FHE32
Supplier Part Number (MPN): 4S32FHE32
|
Alternate Part Numbers
MINO-00925X11083
|
Certifications
SAE J1176
|
Drop Dimension
3.91
|
Brand
Danfoss Power Solutions (II LLC Aeroquip)
|
Brand
Aeroquip
|
Pack Size
1.00
|
UOM
EA
|
End Type 1
Flanged
|
End Type 2
Line/Hose/Tube
|
Features
Dura-Kote plating for superior corrosion resistance|Innovative design to deliver performance and maximum uptime|System engineered to extend hose assembly life
|
Hose Dash Size
-32
|
ICC
Hose Fittings
|
Item Type
Fitting Assembly
|
Language
English
|
Net Pack Quantity Units
EA
|
NMFC
50
|
Product Material
Carbon Steel
|
Product Width
3.39
|
Sub Brand
None
|
Supplier Part Number
4S32FHE32
|
Product Weight
9.14 lbs
|
