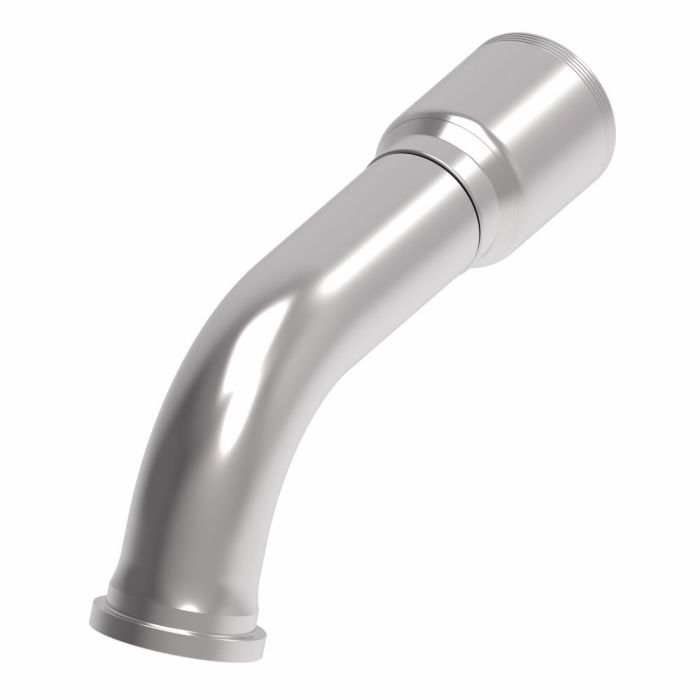

Fitting Perm MM+SPRLCD61 SPLIT FLNG 67.5

Description & Features

With an innovative design this product delivers exceptional performance and maximum uptime. It is system engineered to extend hose assembly life ensuring reliability and durability.

Compliant with SAE J1176 certifications this fitting is built to meet industry standards. The hose dash size is -24 and the product is constructed from high-quality carbon steel.

The drop dimension is 3.9100 and the product width is 2.82 inches making it suitable for various industrial applications. It includes a flanged end type 1 and a line/hose/tube end type 2.

The product features Dura-Kote plating providing superior corrosion resistance that enhances longevity.

Supplier Part Number: 4S32FLE24

Specifications

Brand Aeroquip® by Danfoss	a Dimensions 11.58 in	Compatible Hose ID 1-1/2 in	Connection Size 1 1-1/2 in	Connection Size 2 2 in	Connection Type Flanged, Hose	Connection Type 1 Hose	Connection Type 2 SAE Code 61 Flange	Construction Style Crimp	Cut-Off Factor 8.51 in	Dimension Standards SAE J1176	Dimensions 13 in L x 2.82 in W x 5.8 in H	Drop Dimensions 3.91 in	End Size 1 32	Finish Dura-Kote™	Fitting Type 67-1/2 deg Elbow	For Use With H430, H430R, H525H, H471, H810L, H600, H464 and H850 Series Hoses	Hose Dash Size 24	Inside Diameter 1.22 in	Material Steel	Material Construction Carbon Steel	nmfc 50	Segment Code C	Series 4S Series	Thread Sealant Without Thread Sealant

Product Questions & Answers (1)

Question by: Lynn F on Jan 15, 2026, 10:14 AM

What size hose does this fitting work with? Gotta make sure I get the right one.

Answer by: Customer Support on Jan 16, 2026, 11:07 AM

This fitting is made for a -24 size hose, according to the specs.
