Split Flange Code 61 60°

Description & Features

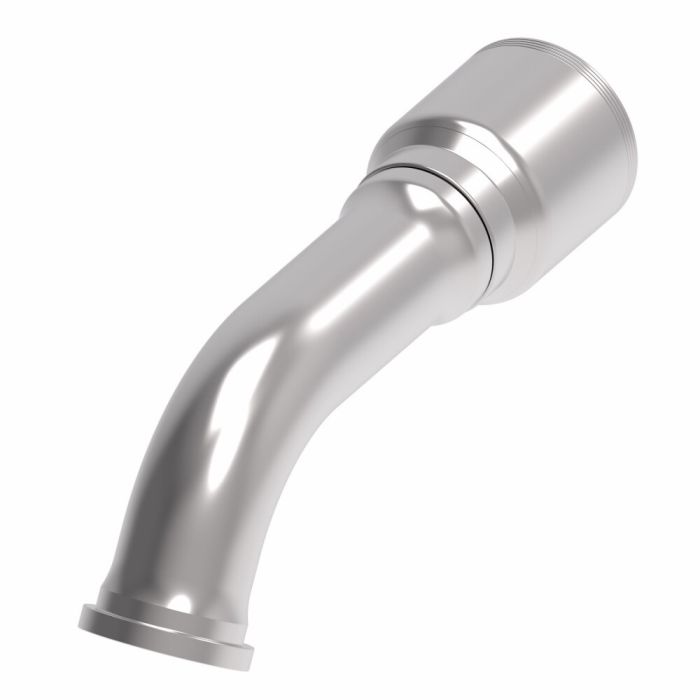

Designed for high-pressure hydraulic circuit connections, this carbon steel fitting assembly from Eaton Aeroquip is built to SAE J1176 certification standards. The Split Flange Code 61 60° configuration suits demanding 4-wire spiral hose assemblies in a -32 hose dash size, with a flanged end on one side and a line/hose/tube connection on the other.

Dura-Kote plating provides corrosion resistance suited to harsh service environments, while the system-engineered design works to extend hose assembly service life and support reliable uptime in heavy-duty hydraulic applications. The 60-degree elbow geometry aids routing in space-constrained installations where straight fittings are not practical.

SKU: 4S32FLG32

Supplier Part Number (MPN): 4S32FLG32

Specifications

Brand Aeroquip® by Danfoss	a Dimensions 12.17 in	Compatible Hose ID 2 in	Connection Size 1 2 in	Connection Size 2 2 in	Connection Type Flanged, Hose	Connection Type 1 Hose	Connection Type 2 SAE Code 61 Flange	Cut-Off Factor 9.1 in	Dimension Standards SAE J1176	Dimensions 13.58 in L x 3.39 in W x 5.58 in H	Drop Dimensions 3.38 in	End Size 1 32	Finish Dura-Kote™	Fitting Type 60 deg Elbow	For Use With H430, H430R, H525H, H471, H810L, H600, H464 and H850 Series Hoses	Hose Dash Size 32	Inside Diameter 1.66 in	Material Steel	Material Construction Carbon Steel	nmfc 50	Segment Code C	Series 4S Series	Thread Sealant Without Thread Sealant

Product Questions & Answers (1)

Question by: Tony R on Mar 26, 2025, 5:38 PM

what's the flange angle on this fitting, is it the 60 degree version or something else?

Answer by: Customer Support on Mar 28, 2025, 8:02 AM

it's the 60 degree elbow configuration. That angle is built right into the fitting design, so you're getting a true 60 degree bend at the flanged end. Comes in handy when you're working in tight quarters and need to route hose without putting a hard kink in the line.
