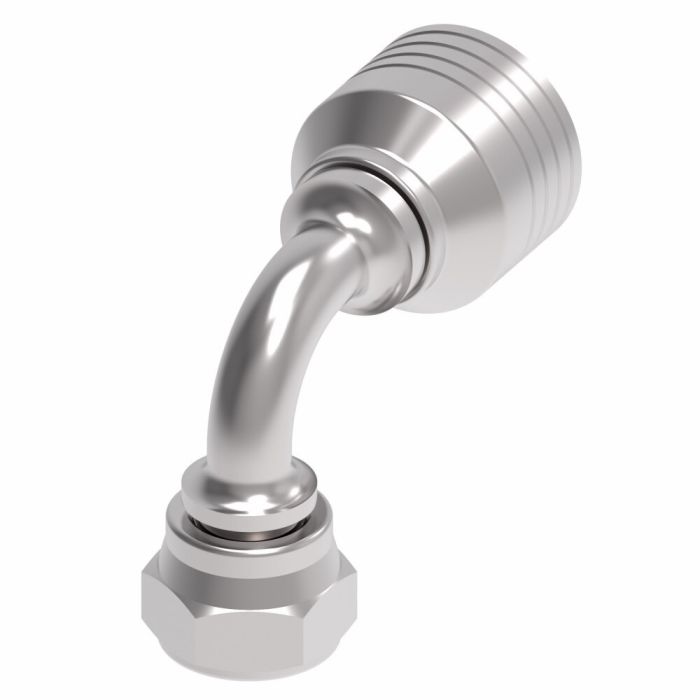

Designed for use with -6 dash size hose, this carbon steel 90-degree elbow fitting features a female BSPP swivel end with a 60-degree cone seat, making it well suited for hydraulic hose assembly applications where angled routing is required. The swivel design allows for easier alignment and installation without placing rotational stress on the hose.
Part of the Aeroquip 4S Series, the Fitting (Perm) 4S carries SAE J1176 certification and is finished with Dura-Kote plating for corrosion resistance in demanding service environments. The system-engineered construction is intended to extend hose assembly service life and support consistent performance under hydraulic system pressures. Material is carbon steel, and the fitting ships as a complete assembly.
SKU: 4S6BFB6
Supplier Part Number (MPN): 4S6BFB6
|
Alternate Part Numbers
MINO-00925X11088
|
Certifications
SAE J1176
|
Drop Dimension
1.38
|
Brand
Danfoss Power Solutions (II LLC Aeroquip)
|
Brand
Aeroquip
|
Pack Size
1.00
|
UOM
EA
|
End Gender 1
13553
|
End Size 1
0.38
|
End Type 1
BSPP
|
End Type 2
Line/Hose/Tube
|
Features
Dura-Kote plating for superior corrosion resistance|Innovative design to deliver performance and maximum uptime|System engineered to extend hose assembly life
|
Hex Size 2
0.87
|
Hose Dash Size
-6
|
ICC
Hose Fittings
|
Item Type
Fitting Assembly
|
Language
English
|
Net Pack Quantity Units
EA
|
NMFC
50
|
Product Material
Carbon Steel
|
Product Width
1.16
|
Sub Brand
None
|
Supplier Part Number
4S6BFB6
|
Product Weight
0.21 lbs
|
