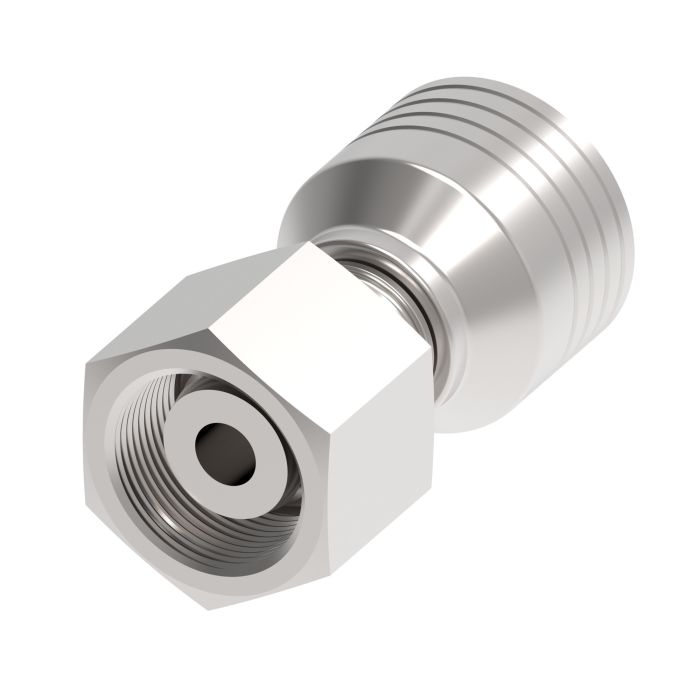

main product photo

Fitting (Perm) 4S

Ask A Question

Description & Features

Designed to meet SAE J1176 standards, the 4S Series Crimp Hose Fittings are engineered for robust performance in industrial hydraulic systems. Featuring a female swivel DIN 24 seat, these fittings are crafted from durable carbon steel, ensuring longevity and reliability. The Dura-Kote plating offers superior corrosion resistance, making them apt for demanding environments. With a metric connection and a hose dash size of -6, this fitting assembly is optimized to extend hose assembly life, thanks to its innovative design.

The Fitting (Perm) 4S is a part of the Aeroquip brand, known for quality and precision. Its end types are tailored for line, hose, or tube connections, providing versatile application possibilities. With a hex size of 0.945 inches and a weight of 1.21 lb, it combines functionality with ease of installation. The manufacturing location in Van Wert, OH, underscores its commitment to quality and precision engineering.

SKU: 4S8DS6

Supplier Part Number (MPN): 4S8DS6

Specifications

Brand
Aeroquip® by Danfoss
a Dimensions
2.12 in
Compatible Hose ID
0.38 in
Connection Size 1
3/8 in
Connection Size 2
1/2 in
Connection Type
Female DKOS Swivel, Hose
Connection Type 1
Hose
Connection Type 2
Female DKOS DIN 24 deg Seat Swivel
Construction Style
Crimp
Cut-Off Factor
1.12 in
Dimension Standards
SAE J1176
Dimensions
2.14 in L x 1.16 in W x 1.16 in H
End Gender 1
Female
End Size 1
08
Finish
Dura-Kote™
Fitting Type
Hose Fitting
For Use With
H430, H430R, H525H, H471, H810L, H600, H464 and H850 Series Hoses
Hex Size
0.94 in
Hose Dash Size
06
Inside Diameter
6.7 mm
Manufacturing Cage Code
VAN WERT OH - 0X660
Material
Steel
Material Construction
Carbon Steel
nmfc
50
Seal Material
NBR
Segment Code
A
Series
4S Series
Thread Sealant
Without Thread Sealant
Thread Size
M20x1.5

Product Questions & Answers (1)

Question by: Cindy J on Dec 6, 2025, 2:02 PM
Will this fitting hold up to regular use in a hydraulic setup, or is it more for light-duty stuff?
Answer by: Customer Support on Dec 8, 2025, 6:47 AM
This fitting is crafted from durable carbon steel and features Dura-Kote plating, so it's built to withstand demanding environments and extend hose assembly life.
