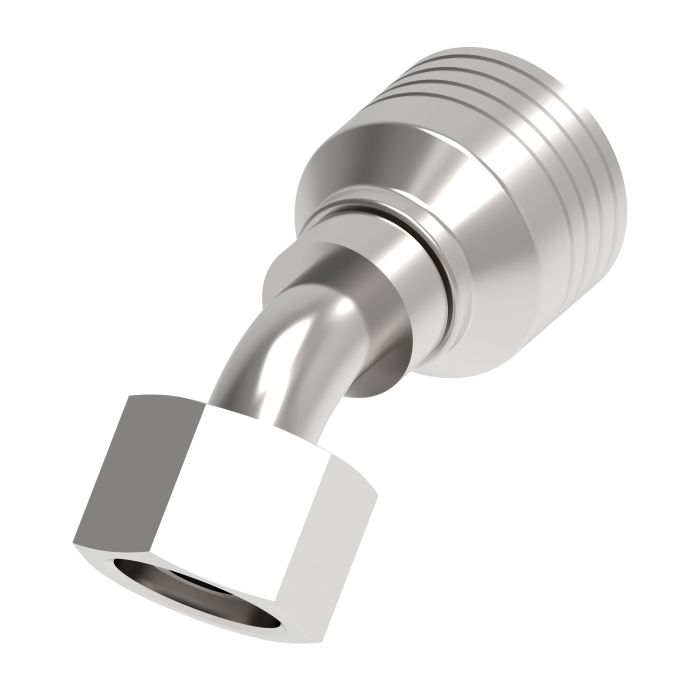

main product photo

Fitting (Perm) 4S

Ask A Question

Description & Features

Designed for demanding hydraulic hose assembly applications, the Fitting (Perm) 4S is a female swivel, 45-degree elbow fitting with a DIN 24 metric seat on one end and a -6 dash size hose connection on the other. Constructed from carbon steel and finished with Dura-Kote plating, it provides strong resistance to corrosion in service environments where surface durability matters. The 45-degree elbow configuration supports routing flexibility in tight or angled installations.

Part of the Aeroquip 4S Series permanent crimp fitting line, this fitting meets SAE J1176 certification standards. The system-engineered design is intended to extend hose assembly service life and support consistent performance over time. With a hex size of 0.945 inches on the hose end and a package weight of 1.24 lb, it is a compact, ready-to-crimp component suited for mobile and industrial hydraulic systems.

SKU: 4S8DSA6

Supplier Part Number (MPN): 4S8DSA6

Specifications

Brand
Aeroquip® by Danfoss
a Dimensions
2.61 in
Compatible Hose ID
0.38 in
Connection Size 1
3/8 in
Connection Size 2
1/2 in
Connection Type
Female DKOS Swivel, Hose
Connection Type 1
Hose
Connection Type 2
Female DKOS DIN 24 deg Seat Swivel
Cut-Off Factor
1.61 in
Dimension Standards
SAE J1176
Dimensions
3.08 in L x 1.15 in W x 1.72 in H
Drop Dimensions
0.68 in
End Gender 1
Female
End Size 1
08
Finish
Zinc-Plated
Fitting Type
45 deg Elbow
For Use With
H430, H430R, H525H, H471, H810L, H600, H464 and H850 Series Hoses
Hex Size
0.94 in
Hose Dash Size
06
Inside Diameter
0.26 in
Manufacturing Cage Code
VAN WERT OH - 0X660
Material
Steel
Material Construction
Carbon Steel
nmfc
50
Seal Material
NBR
Segment Code
C
Series
4S Series
Thread Sealant
Without Thread Sealant
Thread Size
M20x1.5

Product Questions & Answers (1)

Question by: Curt Y on Mar 23, 2026, 12:17 PM
Just want to make sure this elbow fitting will work with my existing Aeroquip 4S hose setup. It's a crimp style, right?
Answer by: Customer Support on Mar 24, 2026, 3:59 PM
Exactly. The Fitting (Perm) 4S is part of the Aeroquip 4S Series of permanent crimp fittings. It's designed to be crimped onto the hose for a secure, lasting connection.
