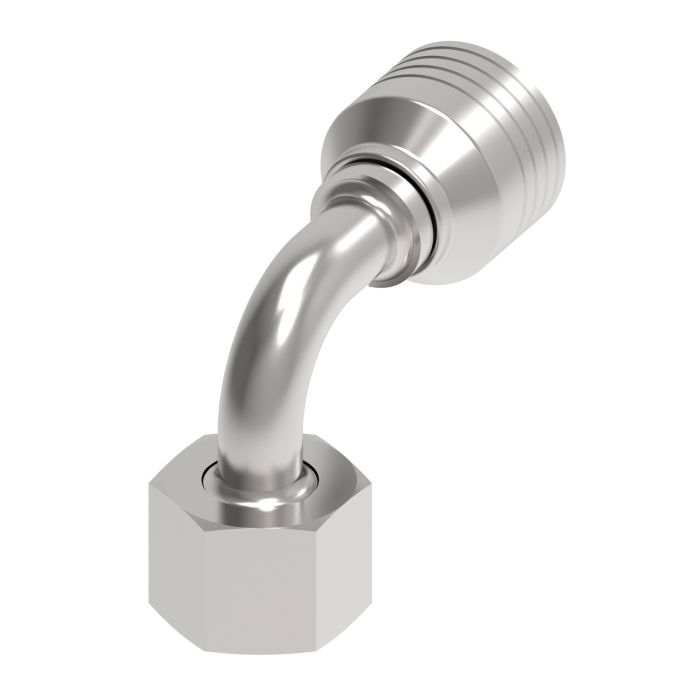

main product photo

Ftng (perm), 4-sprl

Ask A Question

Description & Features

The Danfoss / Eaton 4S Series Crimp Hose Fittings Female Swivel offers a robust solution for hydraulic applications requiring a 90-degree elbow configuration. Constructed from durable carbon steel, this fitting is designed to withstand demanding environments. It features Dura-Kote plating, enhancing its corrosion resistance and prolonging the life of the hose assembly. The fitting is engineered with a female metric end and a line/hose/tube end, ensuring compatibility with a range of systems.

Certified to SAE J1176 standards, the Ftng (perm), 4-sprl is optimized for superior performance and maximum uptime. Its innovative design is tailored to extend hose assembly life, making it a reliable choice for industrial use. With a drop dimension of 1.3800 inches and a hex size of 0.945 inches, this fitting is precision-engineered for seamless integration into hydraulic systems.

SKU: 4S8DSB6

Supplier Part Number (MPN): 4S8DSB6

Specifications

Brand
Aeroquip® by Danfoss
a Dimensions
2.2 in
Compatible Hose ID
0.38 in
Connection Size 1
3/8 in
Connection Size 2
1/2 in
Connection Type
Female DKOS Swivel, Hose
Connection Type 1
Hose
Connection Type 2
Female DKOS DIN 24 deg Seat Swivel
Cut-Off Factor
1.36 in
Dimension Standards
SAE J1176
Dimensions
2.72 in L x 1.15 in W x 1.97 in H
Drop Dimensions
1.39 in
End Gender 1
Female
End Size 1
08
Finish
Zinc-Plated
Fitting Type
90 deg Elbow
For Use With
H430, H430R, H525H, H471, H810L, H600, H464 and H850 Series Hoses
Hex Size
0.94 in
Hose Dash Size
06
Inside Diameter
0.26 in
Manufacturing Cage Code
VAN WERT OH - 0X660
Material
Steel
Material Construction
Carbon Steel
nmfc
50
Seal Material
NBR
Segment Code
A
Series
4S Series
Thread Sealant
Without Thread Sealant
Thread Size
M20x1.5

Product Questions & Answers (1)

Question by: Ronnie R on Mar 2, 2026, 10:36 AM
Can you tell me what kind of plating they use on this fitting to keep it from rusting?
Answer by: Customer Support on Mar 3, 2026, 10:42 AM
Dura-Kote plating provides superior corrosion resistance, helping extend the life of the hose assembly.
