Fitting (Perm) 4S

Ask A Question

Description & Features

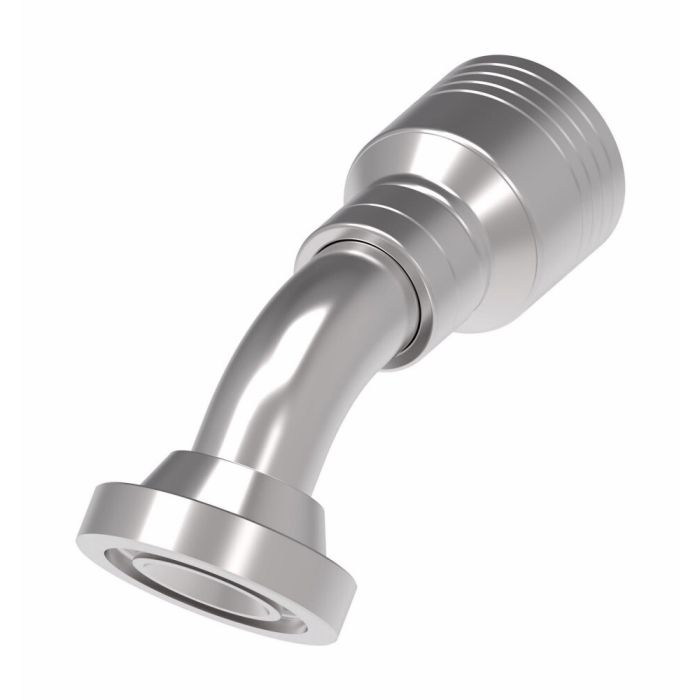

Designed for SAE Code 62 flange connections with a 45-degree elbow configuration, this carbon steel crimp hose fitting from Aeroquip's 4S Series handles -8 hose dash size applications where reliable flange-to-hose termination is required. One end is flanged; the other connects directly to the hose, making it well-suited for high-pressure hydraulic circuits that require angled routing in tight or confined spaces.

The Fitting (Perm) 4S carries SAE J1176 certification and features Dura-Kote plating for corrosion resistance in demanding service environments. The system-engineered design supports extended hose assembly life and consistent performance under repeated pressure cycling. Carbon steel construction provides the structural integrity expected in industrial hydraulic applications.

SKU: 4S8FHA8

Supplier Part Number (MPN): 4S8FHA8

Specifications

Brand
Aeroquip® by Danfoss
a Dimensions
3.05 in
Compatible Hose ID
1/2 in
Connection Size 1
1/2 in
Connection Size 2
1/2 in
Connection Type
Flanged, Hose
Connection Type 1
Hose
Connection Type 2
SAE Code 62 Flange
Construction Style
Crimp
Cut-Off Factor
1.98 in
Dimension Standards
SAE J1176
Drop Dimensions
0.78 in
End Connection Torque
23 to 24 lb-ft
End Size 1
08
Finish
Dura-Kote™
Fitting Type
45 deg Elbow
For Use With
H430, H430R, H525H, H471, H810L, H600, H464 and H850 Series Hoses
Hose Dash Size
08
Inside Diameter
0.36 in
Material
Steel
Material Construction
Carbon Steel
nmfc
50
Segment Code
A
Series
4S Series
Thread Sealant
Without Thread Sealant

Product Questions & Answers (1)

Question by: Cheryl E on Jul 4, 2025, 8:08 AM
So this is for a flange connection, right? Just making sure I understand it correctly.
Answer by: Customer Support on Jul 5, 2025, 6:56 PM
Yes, this fitting is designed for SAE Code 62 flange connections.
