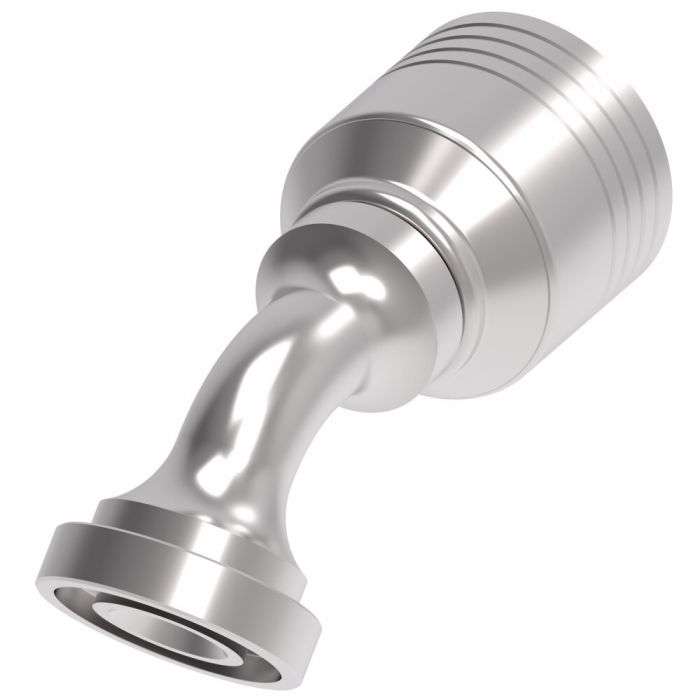

Danfoss / Eaton Fitting (Perm) 4-SPRL61-Flange

Ask A Question

Description & Features

The Danfoss / Eaton Fitting (Perm) 4-SPRL61-Flange is a reliable component engineered for performance-critical applications. Featuring Dura-Kote plating this fitting provides exceptional corrosion resistance ensuring longevity even in harsh environments.

Crafted from carbon steel the fitting meets SAE J1176 certification standards reflecting its high quality and dependability. Designed without adjustable ends it simplifies installation while guaranteeing a secure connection between flanged and hose/line/tube interfaces.

Engineered with an innovative design this fitting is optimized to extend the life of hose assemblies contributing to consistent performance and minimal downtime. The product's dimensions include a product width of 1.34 inches and a drop dimension of 0.7800 inches accommodating various industrial requirements.

Supplier Part Number: 4S8FLA8

Specifications

Brand
Aeroquip® by Danfoss
a Dimensions
3.05 in
Compatible Hose ID
1/2 in
Connection Size 1
1/2 in
Connection Size 2
1/2 in
Connection Type
Flanged, Hose
Connection Type 1
Hose
Connection Type 2
SAE Code 61 Flange
Construction Style
Crimp
Cut-Off Factor
1.98 in
Dimension Standards
SAE J1176
Dimensions
3.64 in L x 1.34 in W x 2.04 in H
Drop Dimensions
0.78 in
End Size 1
08
Finish
Zinc-Plated
Fitting Type
45 deg Elbow
For Use With
H430, H430R, H525H, H471, H810L, H600, H464 and H850 Series Hoses
Hose Dash Size
08
Inside Diameter
0.36 in
Material
Steel
Material Construction
Carbon Steel
nmfc
50
Segment Code
A
Series
4S Series
Thread Sealant
Without Thread Sealant

Product Questions & Answers (1)

Question by: Curt S on Oct 27, 2025, 8:59 PM
This fitting says it's a permanent type, does that mean there's no way to reuse it once it's crimped onto a hose?
Answer by: Customer Support on Oct 29, 2025, 4:51 PM
Permanent fittings like this one are meant to stay put once they're assembled. They're not designed to be removed and reattached, so you'd replace the whole hose assembly if something goes wrong rather than swapping just the fitting. That's actually pretty standard for this style, and it's part of what keeps the connection solid over time.
