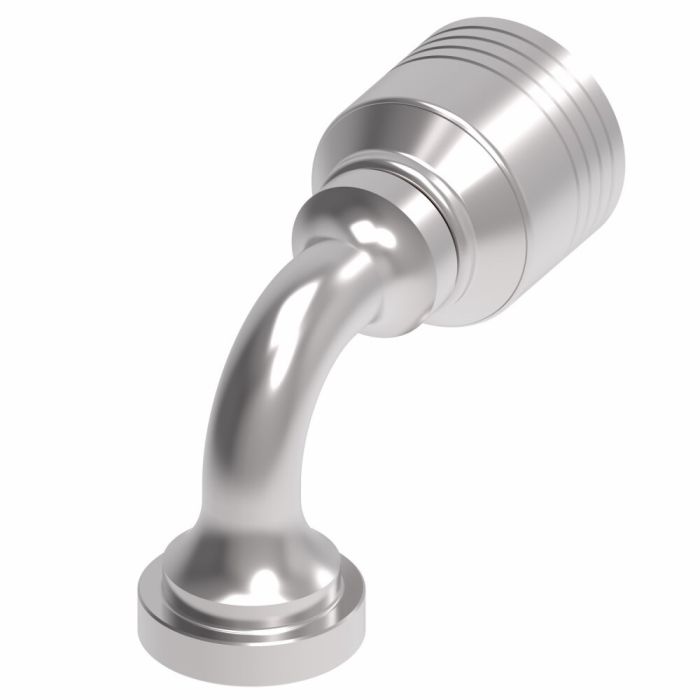

Danfoss / Eaton Fitting (Perm) 4-SPRL61-Flange

Ask A Question

Description & Features

The Danfoss / Eaton Fitting (Perm) 4-SPRL61-Flange is engineered from high-grade carbon steel to ensure durability and reliability in demanding environments. The innovative design delivers exceptional performance while maximizing uptime.

The fitting features Dura-Kote plating providing superior corrosion resistance that extends the life of the hose assembly. This product adheres to SAE J1176 certifications ensuring high standards of quality and compatibility.

End Type 1 is flanged while End Type 2 is suitable for connection to a line hose or tube making it versatile in various applications. The fitting has a hose dash size of -8 and a product width of 1.34 inches.

MPN: EAR99

Specifications

Brand
Aeroquip® by Danfoss
a Dimensions
2.74 in
Compatible Hose ID
1/2 in
Connection Size 1
1/2 in
Connection Size 2
1/2 in
Connection Type
Flanged, Hose
Connection Type 1
Hose
Connection Type 2
SAE Code 61 Flange
Construction Style
Crimp
Cut-Off Factor
1.67 in
Dimension Standards
SAE J1176
Dimensions
3.33 in L x 1.335 in W x 2.3 in H
Drop Dimensions
1.63 in
End Size 1
08
Finish
Zinc-Plated
Fitting Type
90 deg Elbow
For Use With
H430, H430R, H525H, H471, H810L, H600, H464 and H850 Series Hoses
Hose Dash Size
08
Inside Diameter
0.36 in
Material
Steel
Material Construction
Carbon Steel
nmfc
50
Segment Code
A
Series
4S Series
Thread Sealant
Without Thread Sealant

Product Questions & Answers (1)

Question by: Troy W on Oct 14, 2025, 11:31 AM
got a -8 hose setup, is this the right fitting size or am i gonna be fighting it
Answer by: Customer Support on Oct 16, 2025, 7:49 AM
For sizing, this one is a permanent fitting assembly with a hose dash size of -8. If your hose is a -8 dash, the dash size matches up.
