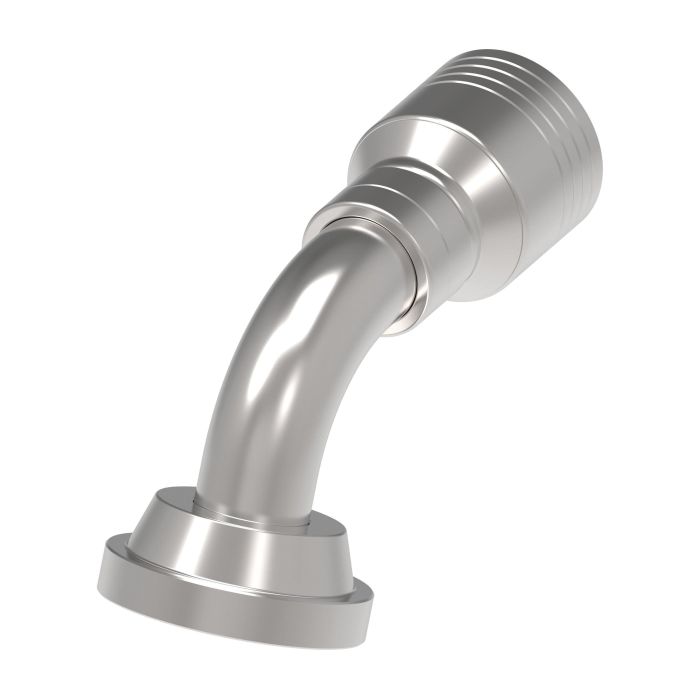

main product photo

Fitting (Perm) 4S

Ask A Question

Description & Features

Designed for SAE Code 61 flange connections, this carbon steel crimp hose fitting from Aeroquip's 4S Series is configured as a 67.5-degree elbow with a -8 hose dash size and a flanged end type. It is built as a permanent fitting assembly, suited to hydraulic systems where a secure, high-integrity connection at the hose-to-flange interface is required.

The Fitting (Perm) 4S carries Dura-Kote plating for corrosion resistance and is certified to SAE J1176. Its system-engineered construction is intended to extend hose assembly service life and support consistent uptime in demanding hydraulic applications. The carbon steel body provides the structural durability expected in industrial hydraulic circuitry.

SKU: 4S8FLE8

Supplier Part Number (MPN): 4S8FLE8

Specifications

Brand
Aeroquip® by Danfoss
a Dimensions
3.31 in
Compatible Hose ID
1/2 in
Connection Size 1
1/2 in
Connection Size 2
1/2 in
Connection Type
Flanged, Hose
Connection Type 1
Hose
Connection Type 2
SAE Code 61 Flange
Construction Style
Crimp
Cut-Off Factor
2.24 in
Dimension Standards
SAE J1176
Drop Dimensions
1.27 in
End Connection Torque
23 to 24 lb-ft
End Size 1
08
Finish
Dura-Kote™
Fitting Type
67-1/2 deg Elbow
For Use With
EC525, EC810, FC254, FC273, FC500, FC636, FC736, GH493 and GH506 Series Hoses
Hose Dash Size
08
Inside Diameter
0.36 in
Material
Steel
Material Construction
Carbon Steel
nmfc
50
Segment Code
A
Series
4S Series
Thread Sealant
Without Thread Sealant

Product Questions & Answers (1)

Question by: Ross B on Dec 7, 2025, 8:36 AM
Will this fitting work with a standard SAE Code 61 flange setup, or are there any special considerations?
Answer by: Customer Support on Dec 8, 2025, 8:50 PM
Designed specifically for SAE Code 61 flange connections, this Aeroquip 4S series fitting ensures compatibility with standard setups. Just make sure your hose size matches the -8 dash size.
