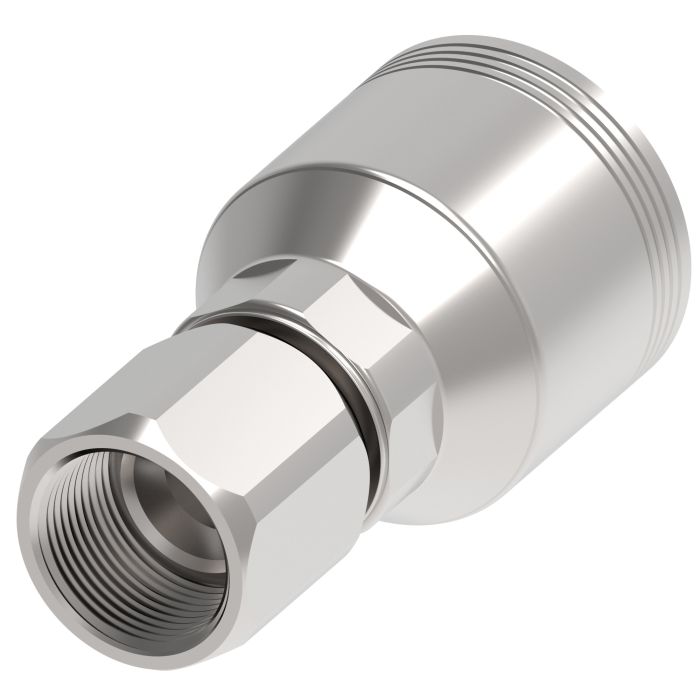

main product photo

Danfoss / Eaton Aeroquip 4-Wire Spiral TTC Fitting

Ask A Question

Description & Features

The Danfoss / Eaton 4S Series Crimp Hose Fittings Female JIC/37 Swivel is expertly designed to ensure maximum uptime and reliability making it ideal for a range of industrial fluid conveyance applications. Engineered with Dura-Kote plating this fitting offers superior corrosion resistance enhancing the durability and lifecycle of hose assemblies.

Constructed from high-quality carbon steel the fitting adheres to the SAE J1176 standard ensuring it meets stringent industry specifications. The innovative design of the Danfoss / Eaton Aeroquip 4-Wire Spiral TTC Fitting (4SA10FJ10) is structured to deliver optimal performance making it a reliable component in the most demanding environments.

With a female JIC 37 swivel end and a -10 hose dash size this fitting ensures a secure and robust connection minimizing potential leaks and downtime. The end size of 0.875 and a hex size of 1.06 provide precise fit and ease of installation.

Supplier Part Number: 4SA10FJ10

Specifications

Brand
Aeroquip® by Danfoss
a Dimensions
2.6 in
Compatible Hose ID
0.62 in
Connection Size 1
5/8 in
Connection Size 2
5/8 in
Connection Type
Female JIC Swivel, Hose
Connection Type 1
Hose
Connection Type 2
Female SAE 37 deg JIC Swivel
Construction Style
Crimp
Cut-Off Factor
1.6 in
Dimension Standards
SAE J1176
Dimensions
2.77 in L x 1.5 in W x 1.5 in H
End Gender 1
Female
End Size 1
7/8 in
Finish
Dura-Kote™
Fitting Type
Hose Fitting
For Use With
H430, H430R, H525H, H471, H810L, H600, H464 and H850 Series Hoses
Hex Size
1 in, 1.06 in
Hose Dash Size
10
Inside Diameter
1/2 in
Material
Steel
Material Construction
Carbon Steel
nmfc
50
Segment Code
A
Series
4S Series
Thread Sealant
Without Thread Sealant
Thread Size
7/8-14
Thread Type
UNF

Product Questions & Answers (1)

Question by: Chad S on May 25, 2025, 8:53 PM
What kind of plating does this fitting have, and will it hold up if it gets exposed to the elements?
Answer by: Customer Support on May 27, 2025, 6:47 AM
Dura-Kote plating gives it good corrosion resistance, which should help extend its life even if it's used outdoors.
