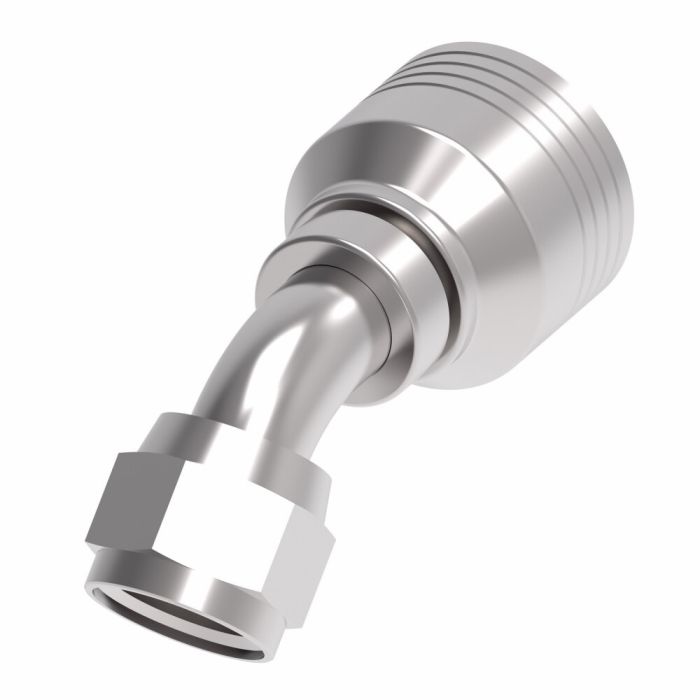

DANFOSS / EATON Fitting (Perm) 4S

Ask A Question

Description & Features

Engineered for reliable performance the Eaton Fitting (Perm) 4S from Danfoss Power Solutions offers exceptional durability with its carbon steel construction. This 4S fitting is designed to extend the life of your hose assembly providing maximum uptime.

The fitting features Dura-Kote plating which provides outstanding corrosion resistance. The innovative design and adherence to SAE J1176 certifications ensure a high standard of quality. It comes with a Female JIC 37 End Type 1 and is not adjustable.

The fittings dimensions include a 0.6300 drop and a product width of 1.48. The end size is 0.875 compatible with Line/Hose/Tube configurations. This fitting does not include batteries blades or a case and it's not machine mountable.

Supplier Part Number: 4SA10FJA10

Specifications

Brand
Aeroquip® by Danfoss
a Dimensions
2.82 in
Compatible Hose ID
0.62 in
Connection Size 1
5/8 in
Connection Size 2
5/8 in
Connection Type
Female JIC Swivel, Hose
Connection Type 1
Hose
Connection Type 2
Female SAE 37 deg JIC Swivel
Construction Style
Crimp
Cut-Off Factor
1.78 in
Dimension Standards
SAE J1176
Dimensions
3.83 in L x 1.481 in W x 2.36 in H
Drop Dimensions
0.63 in
End Gender 1
Female
End Size 1
7/8 in
Finish
Zinc-Plated
Fitting Type
45 deg Elbow
For Use With
H430, H430R, H525H, H471, H810L, H600, H464 and H850 Series Hoses
Hex Size
1 x 1 in
Hose Dash Size
10
Inside Diameter
11.7 mm
Manufacturing Cage Code
VAN WERT OH - 0X660
Material
Steel
Material Construction
Carbon Steel
nmfc
50
Series
4S Series
Thread Sealant
Without Thread Sealant
Thread Size
7/8-14
Thread Type
UNF

Product Questions & Answers (3)

Question by: Donna S on Oct 22, 2025, 8:03 PM
What size hose does this Eaton fitting work with?
Answer by: Customer Support on Oct 24, 2025, 6:06 AM
This fitting is compatible with a -10 hose dash size.
Question by: Daryl H on Oct 15, 2025, 4:00 PM
corrosion's been eating through our fittings something fierce out in the field, what kind of protection does this one actually have?
Answer by: Customer Support on Oct 17, 2025, 6:24 AM
Carbon steel fittings can take a beating in rough environments, and this one comes with Dura-Kote plating specifically to hold up against corrosion. It's not just a basic zinc coating, Dura-Kote is Eaton's own corrosion resistance treatment designed to outperform standard plating options. If rust and chemical exposure have been cutting your fitting life short, that's exactly the problem this addresses.
Question by: Ross J on Dec 5, 2025, 3:59 PM
got a hose end that’s -10, is this 4SA10FJA10 the right dash size or am i mixing things up
Answer by: Customer Support on Dec 7, 2025, 6:16 AM
The key callout is the hose dash size. This fitting is listed as dash -10, and it has a female JIC 37 end with an end size of 0.875.
