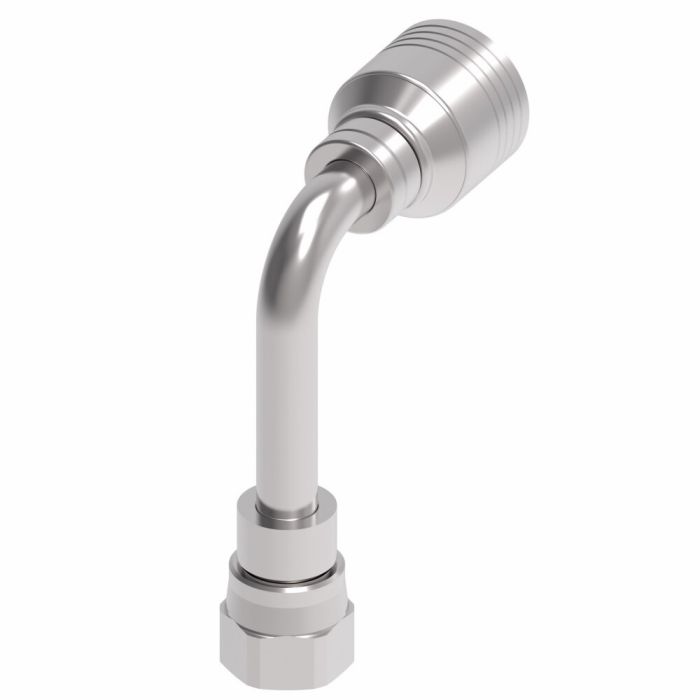

Designed for use with -8 dash size hose, this carbon steel Aeroquip Fitting (Perm) 4S is configured as a female JIC 37° swivel 90° long drop elbow, with a 3.39-inch drop dimension and a 0.875-inch end size on the JIC side. The swivel design allows for rotational positioning during assembly, helping to reduce stress on hose assemblies in tight or angled routing situations.
Finished with Dura-Kote plating for corrosion resistance, this fitting is built to extend hose assembly service life in demanding hydraulic applications. The assembly meets SAE J1176 certification and is manufactured at Eaton's Van Wert, Ohio facility. Carbon steel construction keeps it well-suited for standard hydraulic fluid service where compatibility requirements align with the available fluid compatibility documentation.
SKU: 4SA10FJC8
Supplier Part Number (MPN): 4SA10FJC8
|
Alternate Part Numbers
MINO-00925X11121
|
Certifications
SAE J1176
|
Drop Dimension
3.39
|
Brand
Danfoss Power Solutions (II LLC Aeroquip)
|
Brand
Aeroquip
|
Pack Size
1.00
|
UOM
EA
|
End Gender 1
13553
|
End Size 1
0.88
|
End Type 1
JIC 37
|
End Type 2
Line/Hose/Tube
|
Features
Dura-Kote plating for superior corrosion resistance|Innovative design to deliver performance and maximum uptime|System engineered to extend hose assembly life
|
Hose Dash Size
-8
|
ICC
Hose Fittings
|
Item Type
Fitting Assembly
|
Language
English
|
Net Pack Quantity Units
EA
|
NMFC
50
|
Product Material
Carbon Steel
|
Product Width
1.34
|
Sub Brand
None
|
Supplier Part Number
4SA10FJC8
|
Product Weight
0.50 lbs
|
