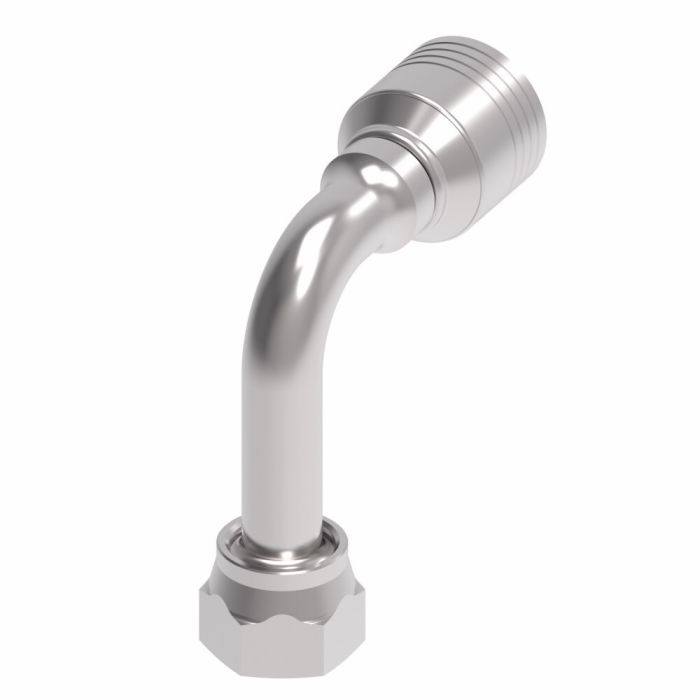

Designed for demanding hydraulic hose assemblies, this carbon steel female ORS swivel 90° long drop elbow is part of the Aeroquip 4S Series permanent crimp fitting line. The long drop configuration features a 2.760-inch drop dimension, making it well-suited for routing hose in tight or offset installation environments. With a -8 hose dash size and a 1-inch end size, the fitting connects a female ORS swivel end to a hose/line end in a 90° orientation.
Dura-Kote plating provides strong corrosion resistance for extended service life in harsh conditions. The Fitting (Perm) 4S is system-engineered to work within matched hose assembly configurations, helping to maintain consistent performance and extend overall hose assembly life. Compliance with SAE J1176 confirms the fitting meets recognized industry standards for hydraulic hose fittings. The assembly weighs 1.6 lb and measures 1.34 inches in width.
SKU: 4SA10FRC8
Supplier Part Number (MPN): 4SA10FRC8
|
Alternate Part Numbers
MINO-00925X11127
|
Certifications
SAE J1176
|
Drop Dimension
2.76
|
Brand
Danfoss Power Solutions (II LLC Aeroquip)
|
Brand
Aeroquip
|
Pack Size
1.00
|
UOM
EA
|
End Gender 1
13553
|
End Size 1
1
|
End Type 1
ORS
|
End Type 2
Line/Hose/Tube
|
Features
Dura-Kote plating for superior corrosion resistance|Innovative design to deliver performance and maximum uptime|System engineered to extend hose assembly life
|
Hose Dash Size
-8
|
ICC
Hose Fittings
|
Item Type
Fitting Assembly
|
Language
English
|
Product Material
Carbon Steel
|
Product Width
1.34
|
Sub Brand
None
|
Supplier Part Number
4SA10FRC8
|
Product Weight
0.60 lbs
|
