Fitting (Perm), 4-SPRL SAE 37

Ask A Question

Description & Features

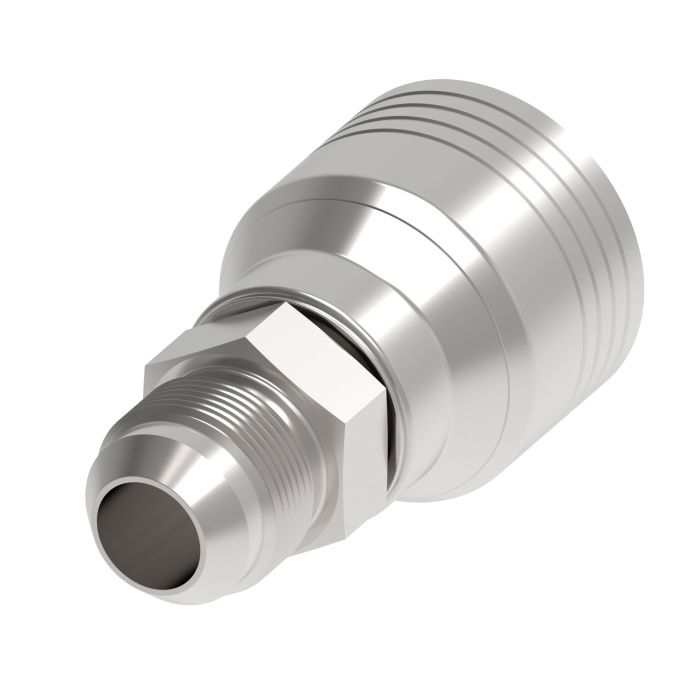

The Danfoss / Eaton 4S Series Crimp Hose Fittings Male JIC/37 features an innovative design to deliver performance and maximum uptime. Engineered to meet SAE J1176 certification it offers reliability in demanding applications.

This carbon steel fitting is designed with a 0.875-inch male JIC 37 end type. It includes Dura-Kote plating providing superior corrosion resistance for extended hose assembly life.

The Fitting (Perm) 4-SPRL SAE 37 is not adjustable or machine mountable ensuring a secure permanent connection. It is suitable for a variety of industrial uses backed by the trusted quality of Danfoss Power Solutions.

Supplier Part Number: 4SA10MJ10

Specifications

Brand
Aeroquip® by Danfoss
a Dimensions
2.73 in
Compatible Hose ID
0.62 in
Connection Size 1
5/8 in
Connection Size 2
5/8 in
Connection Type
Hose, Male JIC
Connection Type 1
Hose
Connection Type 2
Male SAE 37 deg JIC
Construction Style
Crimp
Cut-Off Factor
1.59 in
Dimension Standards
SAE J1176
Dimensions
2.75 in L x 1.481 in W x 1.481 in H
End Gender 1
Male
End Size 1
7/8 in
Finish
Dura-Kote™
Fitting Type
Hose Fitting
For Use With
H430, H430R, H525H, H471, H810L, H600, H464 and H850 Series Hoses
Hex Size
0.94 in
Hose Dash Size
10
Inside Diameter
0.48 in
Material
Steel
Material Construction
Carbon Steel
nmfc
50
Segment Code
A
Series
4S Series
Thread Sealant
Without Thread Sealant
Thread Size
7/8-14
Thread Type
UNF

Product Questions & Answers (2)

Question by: Todd G on Jul 15, 2025, 12:40 PM
does this fitting work as a permanent crimp connection or can it be adjusted after install
Answer by: Customer Support on Jul 16, 2025, 9:53 PM
Once it's crimped, that's it. There's no adjustability built into this fitting, so make sure your hose length and routing are right before you commit. It's meant to stay put, which is exactly what you want in a high-demand line where you can't afford a connection working itself loose over time.
Question by: Brenda B on Dec 17, 2025, 1:24 PM
What size is the JIC end on this fittin'?
Answer by: Customer Support on Dec 19, 2025, 6:50 AM
It's got a 0.875-inch male JIC 37 end.
