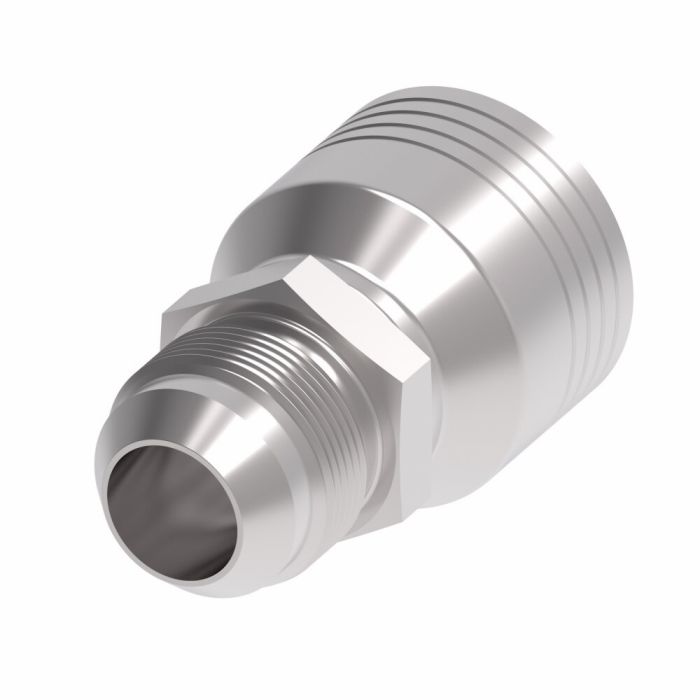

Aeroquip Fitting (Perm) 4-SPRL SAE 37

Ask A Question

Description & Features

Manufactured by Danfoss Power Solutions this premium carbon steel component features Dura-Kote plating enhancing corrosion resistance remarkably. The innovative design ensures maximum uptime and performance. Engineered for hose assembly longevity this product meets SAE J1176 standards.

Key features include a male JIC 37 degree end type with a size of 0.875 suitable for line hose or tube connections. The product offers reliable functionality without the need for additional components like check valves or thread sealants.

Ideal for industrial applications the Aeroquip Fitting (Perm) 4-SPRL SAE 37 provides dependable durability.

Supplier Part Number: 4SA10MJ8

Specifications

Brand
Aeroquip® by Danfoss
a Dimensions
2.33 in
Compatible Hose ID
1/2 in
Connection Size 1
1/2 in
Connection Size 2
5/8 in
Connection Type
Hose, Male JIC
Connection Type 1
Hose
Connection Type 2
Male SAE 37 deg JIC
Construction Style
Crimp
Cut-Off Factor
1.26 in
Dimension Standards
SAE J1176
Dimensions
2.42 in L x 1.335 in W x 1.335 in H
End Gender 1
Male
End Size 1
7/8 in
Finish
Dura-Kote™
Fitting Type
Hose Fitting
For Use With
H430, H430R, H525H, H471, H810L, H600, H464 and H850 Series Hoses
Hex Size
0.94 in
Hose Dash Size
08
Inside Diameter
0.38 in
Material
Steel
Material Construction
Carbon Steel
nmfc
50
Segment Code
A
Series
4S Series
Thread Sealant
Without Thread Sealant
Thread Size
7/8-14
Thread Type
UNF

Product Questions & Answers (3)

Question by: Melvin A on Jan 28, 2026, 10:41 AM
does this fitting need any thread sealant or extra components to work right, or is it good to go as-is?
Answer by: Customer Support on Jan 30, 2026, 6:03 AM
No additional sealants or check valves are needed with this fitting. The male JIC 37-degree end type is designed to seal through metal-to-metal contact at the flare, so it threads up clean without any tape or compound required.
Question by: Debbie K on Feb 23, 2026, 3:59 PM
What size hose does this Aeroquip fitting work with?
Answer by: Customer Support on Feb 24, 2026, 8:46 PM
It's designed for a -10 hose dash size, which means it's suitable for hoses with a 0.625 inch inner diameter.
Question by: Shawn C on Jul 3, 2025, 10:20 AM
trying to match up a fitting i pulled off a hose, is this one a male JIC 37 and what size end is it
Answer by: Customer Support on Jul 4, 2025, 4:52 PM
For fit and end style, it is a male JIC 37 degree fitting with an end size listed as 0.875, intended for line, hose, or tube connections.
