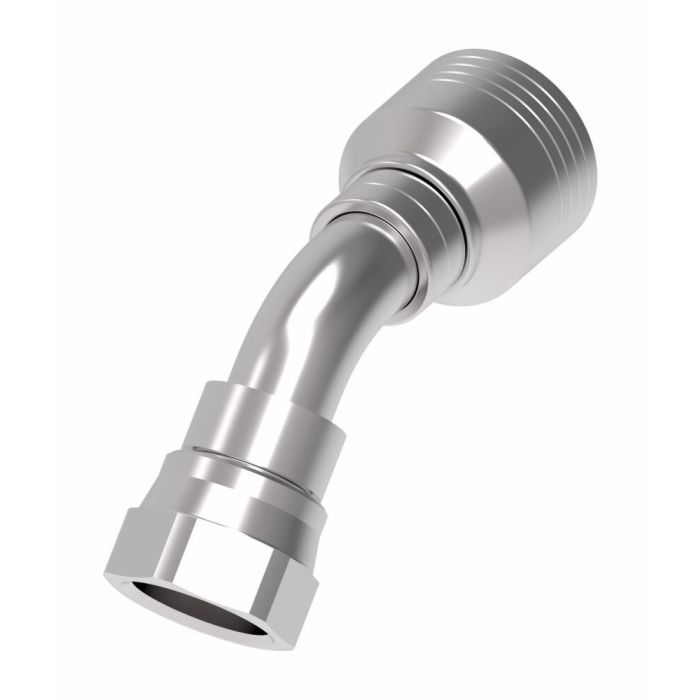

A Female JIC/37 Swivel 45-degree elbow fitting in the -12 hose dash size, the Danfoss / Eaton Fitting (Perm) 4S is a carbon steel crimp hose fitting designed for reliable performance in demanding hydraulic hose assembly applications. The swivel end configuration allows for easier installation and alignment in tight routing situations, reducing stress on connected hose assemblies.
Manufactured under the Aeroquip brand and certified to SAE J1176, this fitting features Dura-Kote plating for corrosion resistance and is engineered to support extended hose assembly service life. The 1-1/4 inch hex size on the line end and a 1.16-inch drop dimension suit a range of standard hydraulic circuit configurations. Fluid compatibility documentation is available from Eaton for reference when specifying this fitting in multi-fluid systems.
SKU: 4SA12FJA10
Supplier Part Number (MPN): 4SA12FJA10
|
Alternate Part Numbers
MINO-00925X11131
|
Certifications
SAE J1176
|
Drop Dimension
1.16
|
Brand
Danfoss Power Solutions (II LLC Aeroquip)
|
Brand
Aeroquip
|
Pack Size
1.00
|
UOM
EA
|
End Gender 1
13553
|
End Type 1
JIC 37
|
End Type 2
Line/Hose/Tube
|
Features
Dura-Kote plating for superior corrosion resistance|Innovative design to deliver performance and maximum uptime|System engineered to extend hose assembly life
|
Hex Size 2
1.25
|
Hose Dash Size
-12
|
ICC
Hose Fittings
|
Item Type
Fitting Assembly
|
Language
English
|
Net Pack Quantity Units
EA
|
NMFC
50
|
Product Material
Carbon Steel
|
Product Width
1.48
|
Sub Brand
None
|
Supplier Part Number
4SA12FJA10
|
Product Weight
0.57 lbs
|
