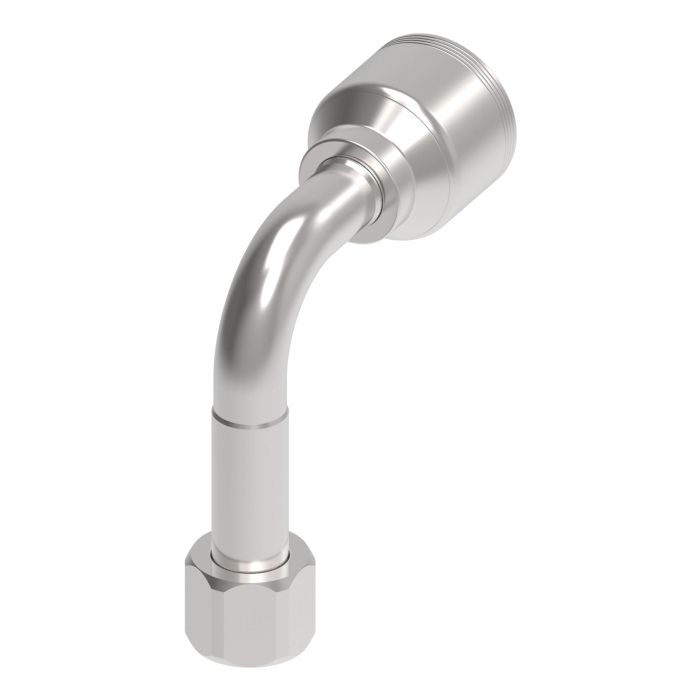

Danfoss / Eaton Aeroquip 4-Wire Spiral TTC Fitting

Description & Features

The Danfoss / Eaton Aeroquip 4-Wire Spiral TTC Fitting is engineered to deliver durability and efficient performance. Its Dura-Kote plating ensures superior resistance to corrosion making it suitable for various demanding environments. This fitting is specifically designed to extend hose assembly life offering maximum uptime and reliability.

With a female_1 JIC 37 end type and suitable for line/hose/tube connections it meets the rigorous standards of SAE J1176 certification. Constructed from robust carbon steel this fitting provides a drop dimension of 3.7800 and a product width of 1.84. The hose dash size is -12.

This fitting does not include a check valve switch connector or remote control and it is not machine mountable. The fitting is part of the highly regarded Eaton Aeroquip series recognized for innovation and system engineering excellence.

MPN: EAR99

Specifications

Brand Aeroquip® by Danfoss	a Dimensions 3.99 in	Compatible Hose ID 3/4 in	Connection Size 1 3/4 in	Connection Size 2 3/4 in	Connection Type Female JIC Swivel, Hose	Connection Type 1 Hose	Connection Type 2 Female SAE 37 deg JIC Swivel	Construction Style Crimp	Cut-Off Factor 2.57 in	Dimension Standards SAE J1176	Dimensions 4.62 in L x 1.84 in W x 4.82 in H	Drop Dimensions 3.78 in	End Gender 1 Female	End Size 1 12	Finish Zinc-Plated	Fitting Type 90 deg Elbow	For Use With H430, H430R, H525H, H471, H810L, H600, H464 and H850 Series Hoses	Hex Size 1-1/4	Hose Dash Size 12	Inside Diameter 0.56 in	Material Steel	Material Construction Carbon Steel	nmfc 50	Segment Code A	Series 4S Series	Thread Sealant Without Thread Sealant	Thread Size 1-1/16-12	Thread Type UN

Product Questions & Answers (1)

Question by: Diane A on Sep 25, 2025, 4:22 PM

fitting says it's for 4-wire spiral hose, does the -12 dash size mean it'll work with a 3/4 inch hose or is that somethin different?

Answer by: Customer Support on Sep 27, 2025, 10:04 AM

Dash sizes in hydraulic fittings follow a standard sizing convention where -12 corresponds to a 3/4 inch hose inside diameter. So yes, you're looking at the right size if you're running 3/4 inch 4-wire spiral hose. Just make sure the hose itself is rated for spiral construction and that the JIC 37 degree flare end on the fitting side matches your mating connection.
