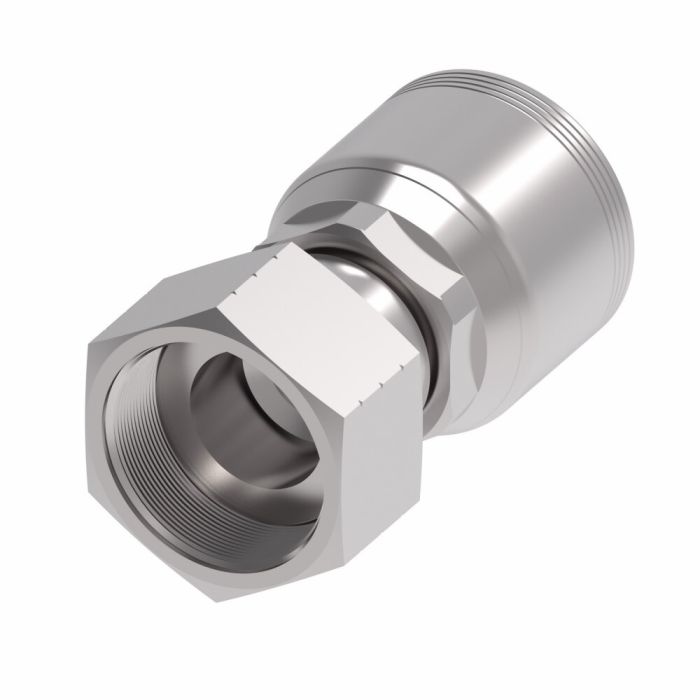

Danfoss / Eaton Aeroquip 4-Wire Spiral TTC Fitting

Description & Features

The Danfoss / Eaton Aeroquip 4-Wire Spiral TTC Fitting is a robust component engineered for performance-focused applications. Designed by Danfoss Power Solutions, this fitting offers SAE J1176 certification, ensuring reliability in demanding environments.

Featuring Dura-Kote plating, this fitting provides superior corrosion resistance, extending the longevity of your hose assemblies. The innovative design of the 4S Series Crimp Hose Fittings includes a female ORS swivel that enhances adaptability and uptime in diverse operational contexts.

Constructed from durable carbon steel, the fitting is engineered to withstand extreme temperatures as low as -40 degrees. This strong material choice enhances the durability and resilience of the product, contributing to extended service life.

The 4-Wire Spiral TTC Fitting is integral for systems that require high-performance hose fittings, specifically crafted to augment the lifespan and reliability of hose assemblies. The product's detailed engineering and stringent adherence to standards ensure it supports a wide range of industrial uses efficiently.

Supplier Part Number: 4SA12FR12

MPN: EAR99

Specifications

Brand Aeroquip® by Danfoss	a Dimensions 3.05 in	Compatible Hose ID 3/4 in	Connection Size 1 3/4 in	Connection Size 2 3/4 in	Connection Type Female ORFS Swivel, Hose	Connection Type 1 Hose	Connection Type 2 Female ORFS Swivel	Construction Style Crimp	Cut-Off Factor 1.62 in	Dimension Standards SAE J1176	Dimensions 3.12 in L x 1.84 in W x 1.836 in H	End Gender 1 Female	End Size 1 12	Finish Dura-Kote™	Fitting Type Hose Fitting	For Use With H430, H430R, H525H, H471, H810L, H600, H464 and H850 Series Hoses	Hex Size 1.375 x 1.188 in	Hose Dash Size 12	Inside Diameter 0.56 in	Material Steel	Material Construction Carbon Steel	nmfc 50	Operating Temperature -40	Segment Code A	Series 4S Series	Thread Sealant Without Thread Sealant	Thread Size 1-3/16-12	Thread Type UN

Product Questions & Answers (4)

Question by: Cody J on Mar 29, 2025, 4:38 PM

Will this fitting hold up in a hydraulic system running at high pressure?

Answer by: Customer Support on Mar 31, 2025, 6:19 AM

This Danfoss/Eaton Aeroquip fitting is designed to work with 4-wire spiral hoses, which are typically used in high-pressure hydraulic applications. Just make sure your hose and system pressures are within the fitting's rated limits.

Question by: Larry M on Apr 16, 2025, 12:53 PM

does this fitting work down to real cold temps, like negative 40 degrees or so?

Answer by: Customer Support on Apr 17, 2025, 1:27 PM

Rated for a minimum working temperature of -40 degrees, so genuine cold weather operation is covered. The carbon steel construction and Dura-Kote plating hold up in harsh environments without adding a lot of maintenance headache to your routine.

Question by: Lee G on Aug 26, 2025, 9:02 AM

got a -12 4-wire spiral hose, is this the right fitting for it?

Answer by: Customer Support on Aug 28, 2025, 8:30 AM

For hose fit, the key callout here is the hose dash size. This fitting is built for a -12 hose and it is a 4-wire spiral TTC fitting assembly, so it matches that hose size and style.

Question by: Kent R on Feb 25, 2026, 2:47 PM

what's the lowest temp this fitting can handle before it starts giving you trouble?

Answer by: Customer Support on Feb 27, 2026, 10:09 AM

Carbon steel construction and the Dura-Kote plating on this fitting are rated down to negative 40 degrees, so cold weather operation and freezing environments are well within range. That floor covers most industrial and outdoor applications without any issue.
