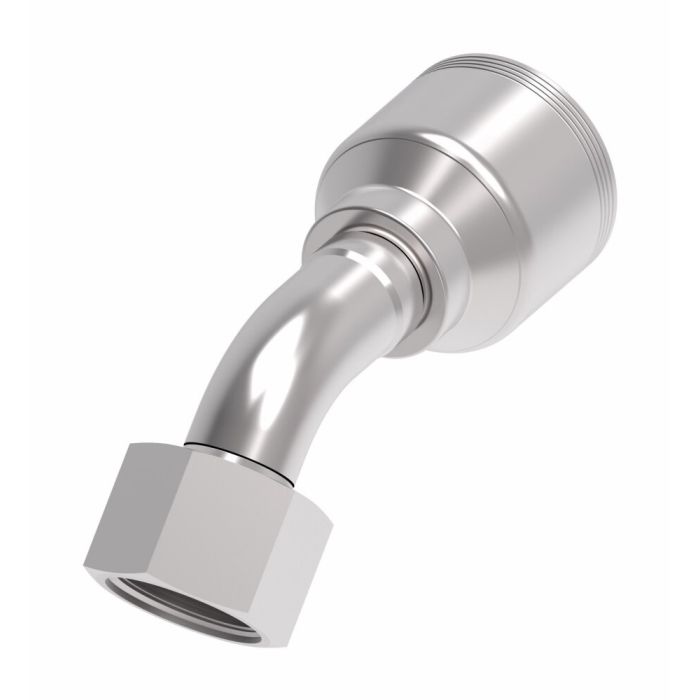

Danfoss / Eaton Aeroquip 4-Wire Spiral TTC Fitting

Description & Features

The Danfoss / Eaton Aeroquip 4-Wire Spiral TTC Fitting delivers optimal performance with its advanced engineering and innovative design. This fitting features a Dura-Kote plating, providing superior corrosion resistance, which ensures extended durability in harsh environments.

Engineered to meet SAE J1176 certifications, this robust product offers maximum uptime and reliability. Constructed from high-quality carbon steel, it is designed specifically to extend the life of hose assemblies, reducing maintenance concerns.

With an end type of ORS and a female end gender, the fitting supports efficient and secure connections. Its notable 0.9400 drop dimension and hose dash size of -12 make it suitable for a range of industrial applications where longevity and performance are critical.

Supplier Part Number: 4SA12FRA12

Specifications

Brand Aeroquip® by Danfoss	a Dimensions 4.28 in	Compatible Hose ID 3/4 in	Connection Size 1 3/4 in	Connection Size 2 3/4 in	Connection Type Female ORFS Swivel, Hose	Connection Type 1 Hose	Connection Type 2 Female ORFS Swivel	Construction Style Crimp	Cut-Off Factor 2.85 in	Dimension Standards SAE J1176	Dimensions 5.6 in L x 1.84 in W x 2.36 in H	Drop Dimensions 0.94 in	End Gender 1 Female	End Size 1 12	Finish Zinc-Plated	Fitting Type 45 deg Elbow	For Use With H430, H430R, H525H, H471, H810L, H600, H464 and H850 Series Hoses	Hex Size 1-3/8 in	Hose Dash Size 12	Inside Diameter 0.56 in	Material Steel	Material Construction Carbon Steel	nmfc 50	Segment Code A	Series 4S Series	Thread Sealant Without Thread Sealant	Thread Size 1-3/16-12	Thread Type UN

Product Questions & Answers (4)

Question by: Merle C on Nov 14, 2025, 8:57 PM

Will this fitting hold up to the kind of pressure you get in heavy equipment hydraulics?

Answer by: Customer Support on Nov 16, 2025, 1:52 PM

Engineered for demanding hydraulic applications, this Eaton Aeroquip fitting meets SAE J1176 standards, suggesting it can handle typical pressures found in heavy equipment, especially when used with compatible 4-wire spiral hose.

Question by: Freddie F on Mar 24, 2025, 6:57 PM

does this fitting work with -12 hose on a 4-wire spiral assembly, or do i need a different dash size?

Answer by: Customer Support on Mar 26, 2025, 1:55 PM

the -12 hose dash size is exactly what this fitting is built for. It pairs with 4-wire spiral hose and uses an ORS end on one side with a line/hose/tube end on the other, so you've got a female ORS connection going into your port and the hose end taking care of the other side. Just make sure your existing assembly matches that configuration before ordering.

Question by: Tommy J on Jun 16, 2025, 7:52 AM

What size hose does this fitting work with? I'm using -12 size hose right now.

Answer by: Customer Support on Jun 17, 2025, 1:19 PM

This fitting is made for a -12 hose dash size.

Question by: Floyd P on Oct 21, 2025, 2:48 PM

trying to match up a spiral hose end, is this one for a -12 hose and a female ORS connection?

Answer by: Customer Support on Oct 23, 2025, 7:46 AM

It is built for a -12 hose dash size and it uses a female ORS end (End Type 1: ORS, End Gender: female). The other side is listed as Line/Hose/Tube.
