Ftng (perm), 4-sprl

Description & Features

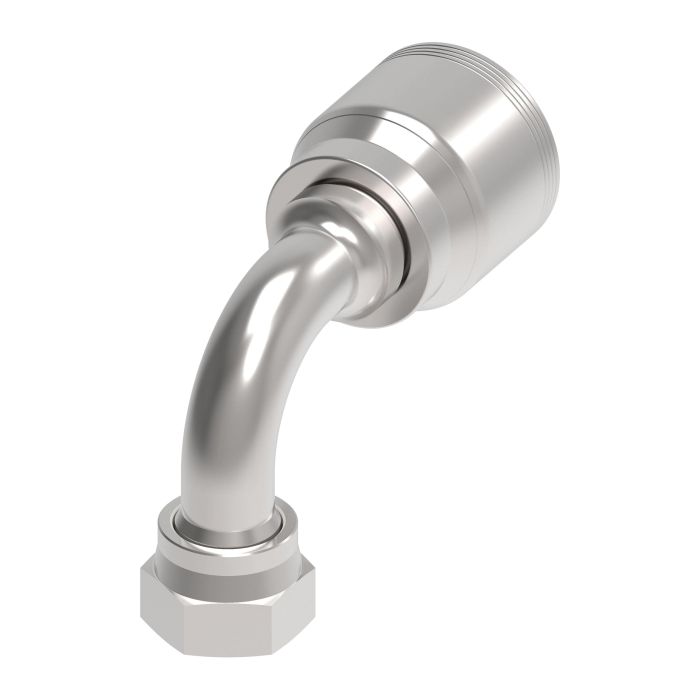

A carbon steel fitting assembly designed for permanent hose installation, this Aeroquip Ftng (perm), 4-sprl connects to an ORS female end on one side and accommodates a line, hose, or tube connection on the other. The 4-spiral construction is suited to high-demand hydraulic hose assemblies where a secure, non-reusable attachment is required.

Built from carbon steel for durability in industrial hydraulic environments, the fitting features a 1.375-inch hex size and a product width of 1.38 inches. The ORS end type provides a reliable O-ring face seal interface, minimizing the risk of leakage at the connection point.

SKU: 4SA12FRB12.048

Supplier Part Number (MPN): 4SA12FRB12.048

Specifications

Brand Aeroquip® by Danfoss	a Dimensions 3.73 in	Compatible Hose ID 3/4 in	Connection Size 1 3/4 in	Connection Size 2 3/4 in	Connection Type Female ORFS Swivel, Hose	Connection Type 1 Hose	Connection Type 2 Female ORFS Swivel	Construction Style Crimp	Cut-Off Factor 2.3 in	Dimension Standards SAE J1176	Drop Dimensions 1.89 in	End Connection Torque 63 to 75 lb-ft	End Gender 1 Female	End Size 1 12	Finish Dura-Kote™	Fitting Type 90 deg Elbow	Hex Size 1-3/8 in	Hose Dash Size 12	Inside Diameter 0.56 in	Material Steel	Material Construction Carbon Steel	Series 4S Series	Thread Sealant Without Thread Sealant	Thread Size 1-3/16-12	Thread Type UN

Product Questions & Answers (1)

Question by: Kent R on Oct 28, 2025, 6:46 PM

What kind of setups does this fitting work with? Looks like I need it for some tubing.

Answer by: Customer Support on Oct 30, 2025, 7:40 AM

This fitting assembly is made to work with ORS female ends on one side and lines, hoses, or tubes on the other.
