Ftng (Perm) 4S Series

Description & Features

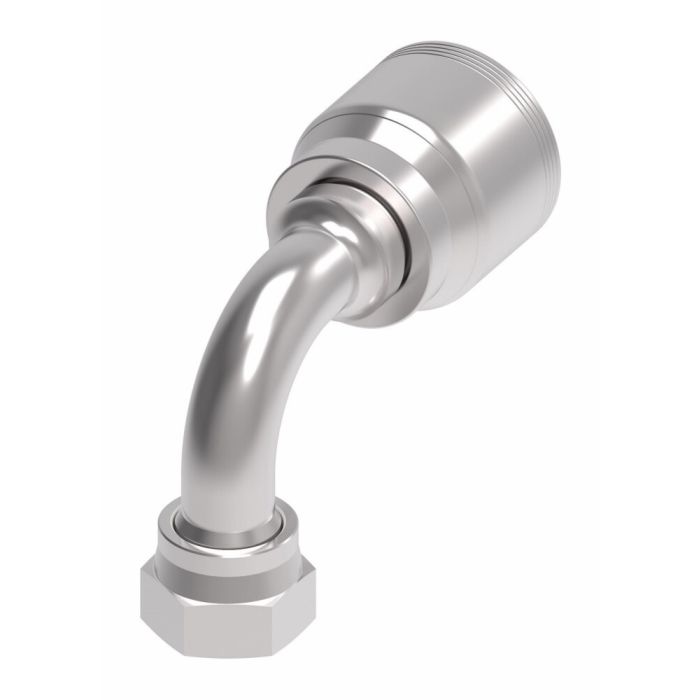

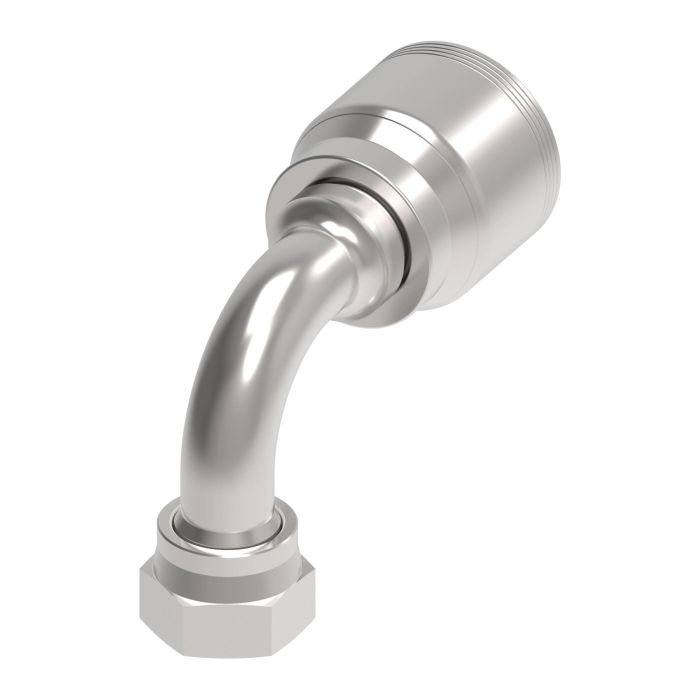

Designed for permanent crimp hose assemblies, this carbon steel Female ORS Swivel 90° Elbow fitting belongs to the Aeroquip 4S Series and is built to handle demanding hydraulic line connections at a -16 hose dash size. The 90° elbow geometry suits installations where straight-run connections are not practical, and the swivel ORS end simplifies alignment during assembly.

Ftng (Perm) 4S Series fittings feature Dura-Kote plating, which provides strong resistance to corrosion in harsh service environments. The system-engineered design is intended to extend hose assembly service life and support maximum uptime in hydraulic circuits. Compliant with SAE J1176, this fitting meets recognized industry standards for hose end fittings. Construction is carbon steel throughout, and the fitting ships as a complete assembly unit.

SKU: 4SA12FRB16

Supplier Part Number (MPN): 4SA12FRB16

Specifications

Brand Aeroquip® by Danfoss	a Dimensions 4.23 in	Compatible Hose ID 1 in	Connection Size 1 1 in	Connection Size 2 3/4 in	Connection Type Female ORFS Swivel, Hose	Connection Type 1 Hose	Connection Type 2 Female ORFS Swivel	Construction Style Crimp	Cut-Off Factor 2.67 in	Dimension Standards SAE J1176	Dimensions 4.9 in L x 2.084 in W x 4.93 in H	Drop Dimensions 2.28 in	End Gender 1 Female	End Size 1 12	Finish Zinc-Plated	Fitting Type 90 deg Elbow	For Use With H430, H430R, H525H, H471, H810L, H600, H464 and H850 Series Hoses	Hex Size 1-3/8 in	Hose Dash Size 16	Inside Diameter 0.76 in	Material Steel	Material Construction Carbon Steel	nmfc 50	Segment Code A	Series 4S Series	Thread Sealant Without Thread Sealant	Thread Size 1-3/16-12	Thread Type UN

Product Questions & Answers (1)

Question by: Danny S on Nov 22, 2025, 12:04 PM

Is this 90-degree elbow fitting made outta regular steel, or somethin' that won't rust on me?

Answer by: Customer Support on Nov 24, 2025, 6:59 AM

Dura-Kote plating gives this fitting good corrosion resistance, so it holds up well even when things get nasty.
