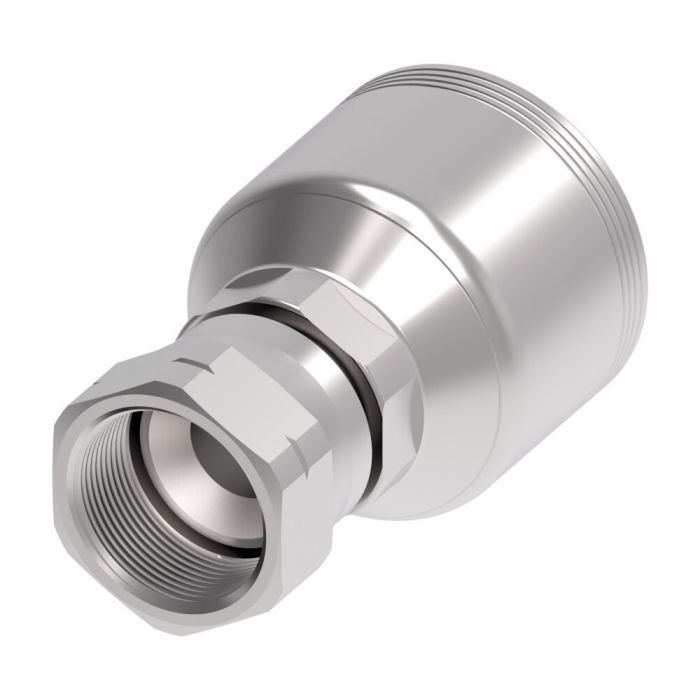

Ftng (perm), 4-sprl, SAE 45, steel

Description & Features

This carbon steel fitting assembly is a Danfoss / Eaton 4S Series crimp hose fitting with a female SAE 45 swivel end. The Ftng (perm), 4-sprl, SAE 45, steel is suitable for hose dash size -12. This fitting is SAE J1176 certified.

Engineered to extend hose assembly life, this fitting features Dura-Kote plating for superior corrosion resistance and an innovative design to deliver performance and maximum uptime. Its End 1 is female, with an SAE 45 connection, while End 2 is designed for line, hose, or tube connections. The hex size 2 measures 1.1875 inches.

SKU: 4SA12FS12

Supplier Part Number (MPN): 4SA12FS12

Specifications

Brand Aeroquip® by Danfoss	a Dimensions 2.42 in	Compatible Hose ID 3/4 in	Connection Size 1 3/4 in	Connection Size 2 3/4 in	Connection Type Female SAE Flared Swivel, Hose	Connection Type 1 Hose	Connection Type 2 Female SAE 45 deg Flare Swivel	Construction Style Crimp	Cut-Off Factor 1.559 in	Dimension Standards SAE J1176	Dimensions 3.19 in L x 1.84 in W x 1.84 in H	End Gender 1 Female	End Size 1 12	Finish Dura-Kote™	Fitting Type Hose Fitting	For Use With H430, H430R, H525H, H471, H810L, H600, H464 and H850 Series Hoses	Hex Size 1.25 x 1.188 in	Hose Dash Size 12	Inside Diameter 0.56 in	Material Steel	Material Construction Carbon Steel	nmfc 50	Segment Code B	Series 4S Series	Thread Sealant Without Thread Sealant	Thread Size 1-1/16-14	Thread Type UN

Product Questions & Answers (1)

Question by: Judy P on Jun 4, 2025, 10:52 AM

So this is for a -12 hose... what size is that in inches?

Answer by: Customer Support on Jun 6, 2025, 6:54 AM

This fitting is designed for a hose with a -12 dash size, which corresponds to a 3/4 inch inside diameter.
