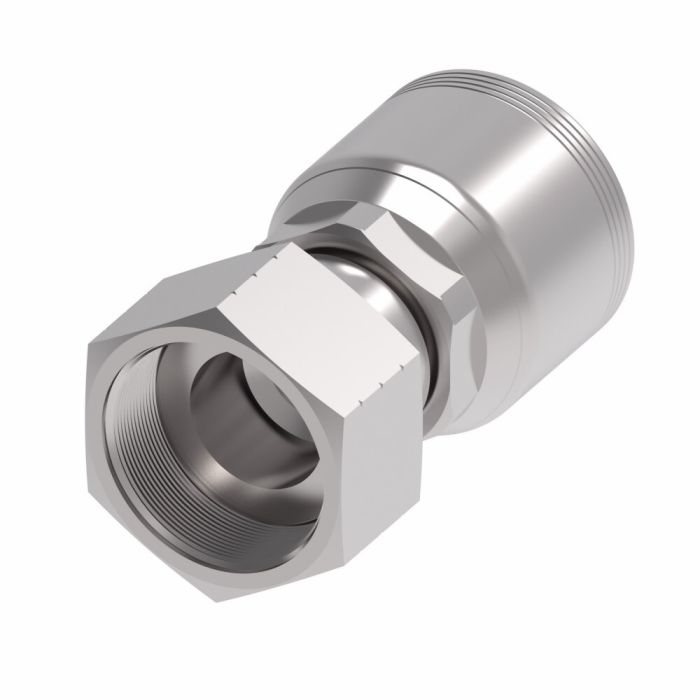

Danfoss / Eaton Aeroquip 4-Wire Spiral TTC Fitting

Description & Features

The Danfoss / Eaton Aeroquip 4-Wire Spiral TTC Fitting demonstrates advanced engineering designed to elevate performance in demanding environments. Equipped with Dura-Kote plating it offers superior resistance to corrosion significantly extending the life of your hose assemblies.

This fitting constructed from high-quality carbon steel aligns with SAE J1176 certifications ensuring compliance with industry standards. Its female ORS swivel end type ensures a secure connection enhancing the durability and reliability of your system.

Featuring a -12 hose dash size and a hex size of 1.625 this model is meticulously crafted to meet the specific needs of high-pressure applications. The innovative design prioritizes system efficiency reducing downtime and maximizing uptime.

Supplier Part Number: 4SA16FR12

Specifications

Brand Aeroquip® by Danfoss	a Dimensions 3.12 in	Compatible Hose ID 3/4 in	Connection Size 1 3/4 in	Connection Size 2 1 in	Connection Type Female ORFS Swivel, Hose	Connection Type 1 Hose	Connection Type 2 Female ORFS Swivel	Construction Style Crimp	Cut-Off Factor 1.7 in	Dimension Standards SAE J1176	Dimensions 3.3 in L x 1.836 in W x 1.87 in H	End Gender 1 Female	End Size 1 16	Finish Dura-Kote™	Fitting Type Hose Fitting	For Use With H430, H430R, H525H, H471, H810L, H600, H464 and H850 Series Hoses	Hex Size 1.614 x 1.188 in	Hose Dash Size 12	Inside Diameter 0.56 in	Material Steel	Material Construction Carbon Steel	nmfc 50	Seal Material EPDM	Segment Code A	Series 4S Series	Thread Sealant Without Thread Sealant	Thread Size 1-7/16-12	Thread Type UN

Product Questions & Answers (1)

Question by: Rex M on May 20, 2025, 7:52 PM

What kind of corrosion resistance does this fitting offer?

Answer by: Customer Support on May 22, 2025, 8:52 AM

Dura-Kote plating provides this fitting with superior corrosion resistance, which helps extend the life of your hose assemblies.
