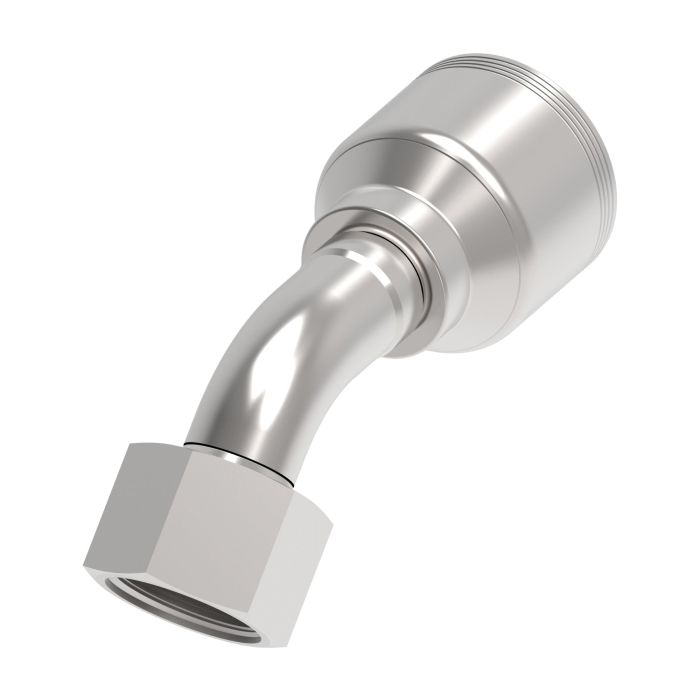

Danfoss / Eaton Aeroquip 4-Wire Spiral TTC Fitting

Description & Features

The Danfoss / Eaton Aeroquip 4-Wire Spiral TTC Fitting is a precision-engineered component designed for high-performance environments. This fitting features a robust carbon steel construction ensuring durability and longevity in demanding applications.

Equipped with Dura-Kote plating it offers superior corrosion resistance which is critical for operational reliability and extended service life. The innovative design of this fitting is tailored to deliver consistent performance and maximum uptime reducing the need for frequent maintenance.

This fitting meets SAE J1176 certifications ensuring it adheres to stringent industry standards. It is designed for female_1 ORS connections on one end and line/hose/tube connections on the other making it a versatile solution for various industrial uses.

The product width of 1.84 and hose dash size of -12 make it suitable for a range of applications. The 1.1000 drop dimension further enhances its adaptability in complex setups providing a reliable connection point.

Supplier Part Number: 4SA16FRA12

Specifications

Brand Aeroquip® by Danfoss	a Dimensions 4.72 in	Compatible Hose ID 3/4 in	Connection Size 1 3/4 in	Connection Size 2 1 in	Connection Type Female ORFS Swivel, Hose	Connection Type 1 Hose	Connection Type 2 Female ORFS Swivel	Construction Style Crimp	Cut-Off Factor 3.3 in	Dimension Standards SAE J1176	Dimensions 6.11 in L x 1.84 in W x 2.083 in H	Drop Dimensions 1.1 in	End Gender 1 Female	End Size 1 16	Finish Zinc-Plated	Fitting Type 45 deg Elbow	For Use With H430, H430R, H525H, H471, H810L, H600, H464 and H850 Series Hoses	Hex Size 1.614 in	Hose Dash Size 12	Inside Diameter 0.56 in	Material Steel	Material Construction Carbon Steel	nmfc 50	Seal Material EPDM	Segment Code A	Series 4S Series	Thread Sealant Without Thread Sealant	Thread Size 1-7/16-12	Thread Type UN

Product Questions & Answers (1)

Question by: Earl P on Jun 19, 2025, 7:51 AM

fitting's got a -12 hose dash size on it, does that line up with standard 4-wire spiral hose assemblies for heavy equipment?

Answer by: Customer Support on Jun 21, 2025, 6:03 AM

For 4-wire spiral hose assemblies sized at -12, this fitting is built to match up correctly. The TTC (Tough Tough Coupling) design from Eaton Aeroquip is a system-engineered solution, meaning the fitting and hose are intended to work together as a matched assembly to extend overall service life. The ORS end on the female side gives you a clean, leak-resistant connection point on the equipment end, while the other end handles line, hose, or tube connections. Carbon steel construction keeps it tough enough for the kind of high-pressure spiral hose work these assemblies are typically put through.
