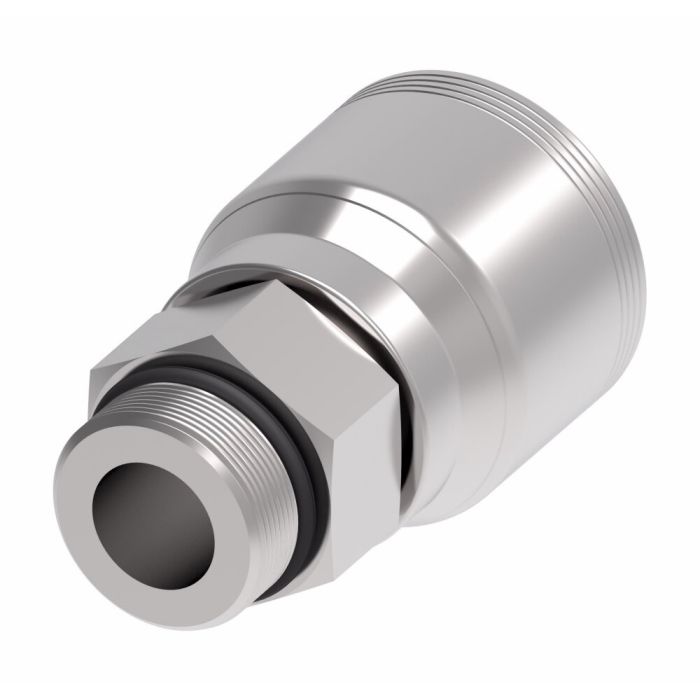

Danfoss / Eaton Aeroquip 4-Wire Spiral TTC Fitting

Description & Features

Danfoss / Eaton 4S Series Crimp Hose Fittings Male O-ring Boss offer superior performance and durability. This fitting features Dura-Kote plating providing exceptional corrosion resistance. Engineered for maximum uptime it is designed to extend hose assembly life.

Meeting SAE J1176 certification this product guarantees compliance with industry standards. Constructed from high-quality carbon steel it ensures reliability in demanding applications. The fitting is suitable for a variety of industrial uses.

The male O-ring boss connection and SAE thread type make it versatile for different setups. Its robust design ensures longevity and consistent performance. Ideal for heavy-duty environments where reliability is paramount.

MPN: 4SA16MB16

Supplier Part Number: 4SA16MB16

Specifications

Brand Aeroquip® by Danfoss	a Dimensions 3.47 in	Compatible Hose ID 1 in	Connection Size 1 1 in	Connection Size 2 1 in	Connection Type Hose, Male ORB	Connection Type 1 Hose	Connection Type 2 Male ORB	Construction Style Crimp	Cut-Off Factor 1.91 in	Dimension Standards SAE J1176	Dimensions 3.5 in L x 2.08 in W x 2.08 in H	End Gender 1 Male	End Size 1 16	Finish Dura-Kote™	Fitting Type Hose Fitting	For Use With H430, H430R, H525H, H471, H810L, H600, H464 and H850 Series Hoses	Hex Size 1-1/2 in	Hose Dash Size 16	Inside Diameter 0.76 in	Material Steel	Material Construction Carbon Steel	nmfc 50	Seal Material NBR	Segment Code A	Series 4S Series	Thread Sealant Without Thread Sealant	Thread Size 1-5/16-12	Thread Type UN

Product Questions & Answers (1)

Question by: Rick P on Feb 13, 2026, 5:13 PM

does this fitting work with 4-wire spiral hose on a -16 dash size? trying to make sure I get the right crimp fitting before I order

Answer by: Customer Support on Feb 15, 2026, 6:02 AM

Yes, the 4SA16MB16 is built specifically for -16 dash size hose and is part of Eaton Aeroquip's 4S series, which is engineered for 4-wire spiral hose assemblies. The male O-ring boss end connects via SAE thread, so as long as your mating port is an SAE ORB configuration, you're in good shape.
