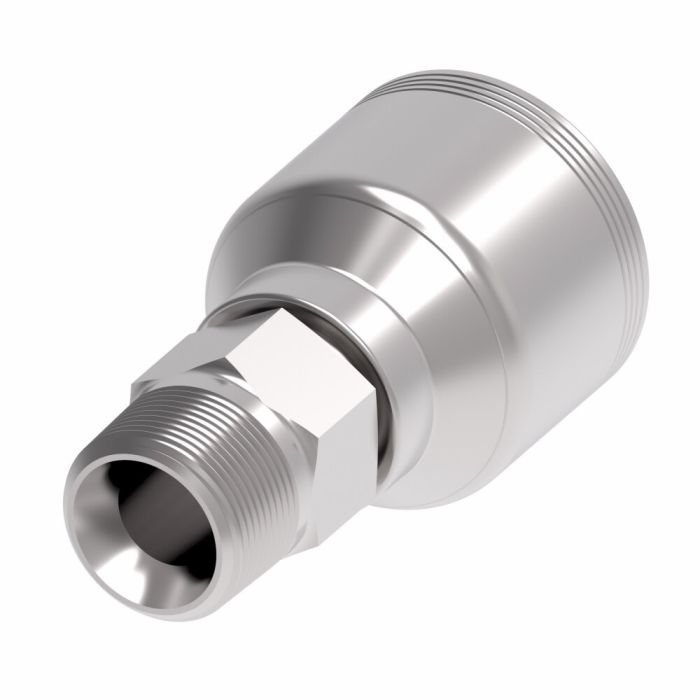

Male Pipe

Description & Features

The Danfoss / Eaton 4S Series Crimp Hose Fitting is a top-tier solution designed for industrial hose applications. Featuring Dura-Kote plating it provides superior corrosion resistance ensuring reliability and longevity in demanding environments.

Carefully engineered this fitting delivers performance and maximum uptime. The innovative design is system-engineered to extend hose assembly life making it a dependable choice for your needs.

Certifications include SAE J1176 ensuring conformity with industry standards. The product is constructed from robust carbon steel delivering durability and strength. The male end is sized at 1 inch with an NPTF thread type suitable for various industrial connections.

Designed without an adjustable end it maintains a fixed configuration to meet specific requirements. Additionally the included thread sealant guarantees a secure and leak-free connection.

Supplier Part Number: 4SA16MP12

Specifications

Brand Aeroquip® by Danfoss	a Dimensions 3.34 in	Compatible Hose ID 3/4 in	Connection Size 1 3/4 in	Connection Size 2 1 in	Connection Type Hose, MNPT	Connection Type 1 Hose	Connection Type 2 Male NPTF	Construction Style Crimp	Cut-Off Factor 1.91 in	Dimension Standards SAE J1176	Dimensions 3.42 in L x 1.84 in W x 1.836 in H	End Gender 1 Male	End Size 1 1 in	Finish Zinc-Plated	Fitting Type Hose Fitting	For Use With H430, H430R, H525H, H471, H810L, H600, H464 and H850 Series Hoses	Hex Size 1-3/8 in	Hose Dash Size 12	Inside Diameter 0.56 in	Material Steel	Material Construction Carbon Steel	nmfc 50	Segment Code A	Series 4S Series	Thread Sealant With Thread Sealant	Thread Size 1-11-1/2

Product Questions & Answers (2)

Question by: Clint M on Sep 18, 2025, 7:44 PM

Got a 4-wire spiral hose assembly I'm trying to button up and need a male pipe end to finish it off. This a -12 dash size fitting?

Answer by: Customer Support on Sep 20, 2025, 5:42 PM

Yes, the hose dash size on this one is -12, and it's built specifically for 4-wire spiral hose assemblies. The male end is 1-inch NPTF thread, so as long as your port matches that thread type and size, you're in good shape to complete the assembly.

Question by: Roy H on Jun 22, 2025, 3:44 PM

Will this fitting work with any old hose, or does it need to be a specific kind?

Answer by: Customer Support on Jun 24, 2025, 10:46 AM

This Eaton Aeroquip fitting is designed for use with 4-wire spiral hoses, ensuring optimal performance and a secure connection.
