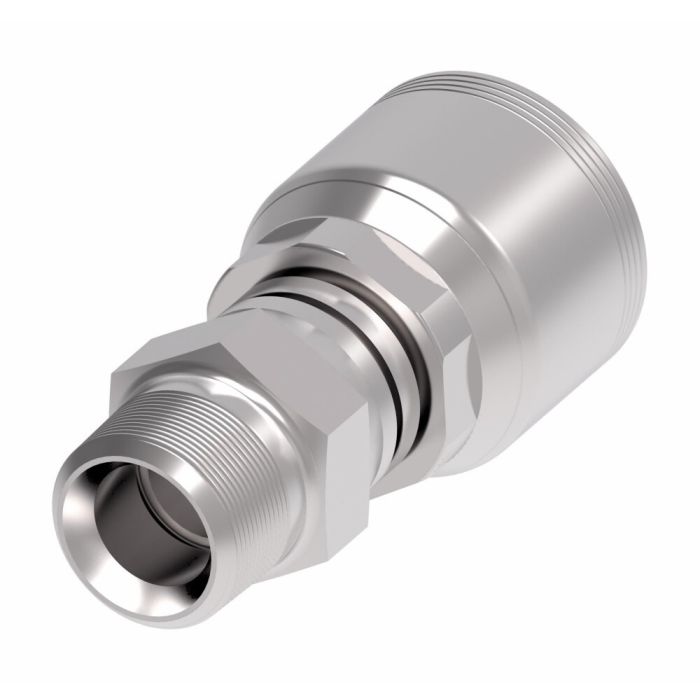

Danfoss / Eaton Fitting Perm 4-SPRL NPTF/SM Steel STR

Description & Features

Designed to ensure durability and reliability the Danfoss / Eaton Fitting Perm 4-SPRL NPTF/SM Steel STR is constructed from high-quality carbon steel and features a straight male NPTF end type.

The Dura-Kote plating provides excellent corrosion resistance meeting the SAE J1176 certification standards. This fitting is engineered to prolong the life of hose assemblies making it a valuable addition to any industrial setup requiring robust and efficient connections.

Optimized for performance this fitting does not require adjustments or mandrels streamlining the installation process. The design is specifically tailored for hose fittings with a -16 hose dash size ensuring compatibility with various systems.

This product falls under ECCN EAR99 ensuring compliance with export regulations.

Supplier Part Number: 4SA16PS16

Specifications

Brand Aeroquip® by Danfoss	a Dimensions 4.34 in	Compatible Hose ID 1 in	Connection Size 1 1 in	Connection Size 2 1 in	Connection Type Hose, MNPT Swivel	Connection Type 1 Hose	Connection Type 2 Male NPTF Swivel	Construction Style Crimp	Cut-Off Factor 2.76 in	Dimension Standards SAE J1176	Dimensions 4.42 in L x 2.08 in W x 2.084 in H	End Gender 1 Male	End Size 1 1 in	Finish Zinc-Plated	Fitting Type Hose Fitting	For Use With H430, H430R, H525H, H471, H810L, H600, H464 and H850 Series Hoses	Hex Size 1-1/2 in	Hose Dash Size 16	Inside Diameter 3/4 in	Material Steel	Material Construction Carbon Steel	nmfc 50	Seal Material NBR	Segment Code A	Series 4S Series	Thread Sealant With Thread Sealant	Thread Size 1-11-1/2

Product Questions & Answers (3)

Question by: Connie F on Dec 17, 2025, 6:17 AM

Will this fitting hold up if I'm running hydraulic fluid through it pretty much non-stop?

Answer by: Customer Support on Dec 18, 2025, 7:57 AM

Dura-Kote plating is included for corrosion resistance, which helps extend the fitting's life even with continuous use.

Question by: Tony R on Feb 24, 2026, 12:43 PM

trying to swap out a fitting on a -16 hose, is this one actually made for that dash size?

Answer by: Customer Support on Feb 26, 2026, 12:13 PM

It is built around a -16 hose dash size, so it matches hose assemblies that call for a -16 in the Eaton Aeroquip 4S Series crimp style.

Question by: Floyd B on May 6, 2025, 1:06 PM

fitting says it don't need any mandrels or adjustments during install, that accurate for the 4SA16PS16?

Answer by: Customer Support on May 8, 2025, 6:43 AM

Correct on that. The design eliminates the need for mandrels or any pre-installation adjustments, so you're working with a straightforward crimp process. That's one of the things that makes this fitting practical for production environments where you want consistent results without extra steps.
