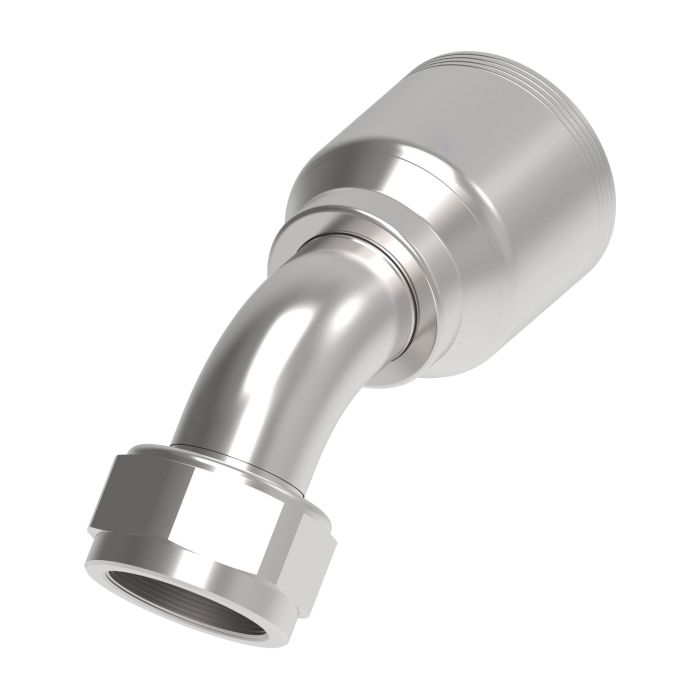

Female JIC/37° Swivel 45°

Description & Features

Engineered by Danfoss Power Solutions (II LLC Aeroquip) this fitting offers a JIC 37 end for seamless integration with line hose or tube systems. The Female JIC/37 Swivel 45 fitting ensures reliable and efficient operation with its precision-engineered design and extended hose assembly lifespan.

Constructed from robust carbon steel it features a Dura-Kote plating that provides superior corrosion resistance maintaining longevity even in harsh conditions. Certification to SAE J1176 standards underscores its quality and reliability in demanding industrial applications.

The innovative design of this EATON AEROQUIP 4-WIRE SPIRAL TTC FITTING promotes maximum uptime reducing maintenance intervals and enhancing the overall efficiency of hydraulic systems.

Supplier Part Number: 4SA20FJA20

MPN: 4SA20FJA20

Specifications

Brand Aeroquip® by Danfoss	a Dimensions 5.34 in	Compatible Hose ID 1-1/4 in	Connection Size 1 1-1/4 in	Connection Size 2 1-1/4 in	Connection Type Female JIC Swivel, Hose	Connection Type 1 Hose	Connection Type 2 Female SAE 37 deg JIC Swivel	Construction Style Crimp	Cut-Off Factor 3.17 in	Dimension Standards SAE J1176	Dimensions 7.09 in L x 2.46 in W x 4.13 in H	Drop Dimensions 1.26 in	End Gender 1 Female	End Size 1 20	Finish Dura-Kote™	Fitting Type 45 deg Elbow	For Use With H430, H430R, H525H, H471, H810L, H600, H464 and H850 Series Hoses	Hex Size 1.97 in	Hose Dash Size 20	Inside Diameter 0.99 in	Material Steel	Material Construction Carbon Steel	nmfc 50	Segment Code A	Series 4S Series	Thread Sealant Without Thread Sealant	Thread Size 1-5/8-12	Thread Type UN

Product Questions & Answers (2)

Question by: Scott T on Oct 12, 2025, 2:10 PM

does this fitting work with 4-wire spiral hose or is it meant for something else

Answer by: Customer Support on Oct 14, 2025, 12:49 PM

Built specifically for 4-wire spiral hose assemblies, this is an Eaton Aeroquip TTC fitting rated to SAE J1176 standards. The JIC 37 degree swivel end on one side connects to your line, hose, or tube, and the 45 degree angle helps route hose in tighter spaces without putting stress on the assembly. Carbon steel construction with Dura-Kote plating keeps corrosion from becoming a problem even in rough working conditions.

Question by: Hugh E on Oct 30, 2025, 6:35 PM

Will this fitting hold up if I'm running it pretty much constantly?

Answer by: Customer Support on Nov 1, 2025, 2:44 PM

Constructed from carbon steel with a Dura-Kote plating, this fitting is designed to withstand demanding industrial applications and provide superior corrosion resistance, which helps extend its lifespan.
