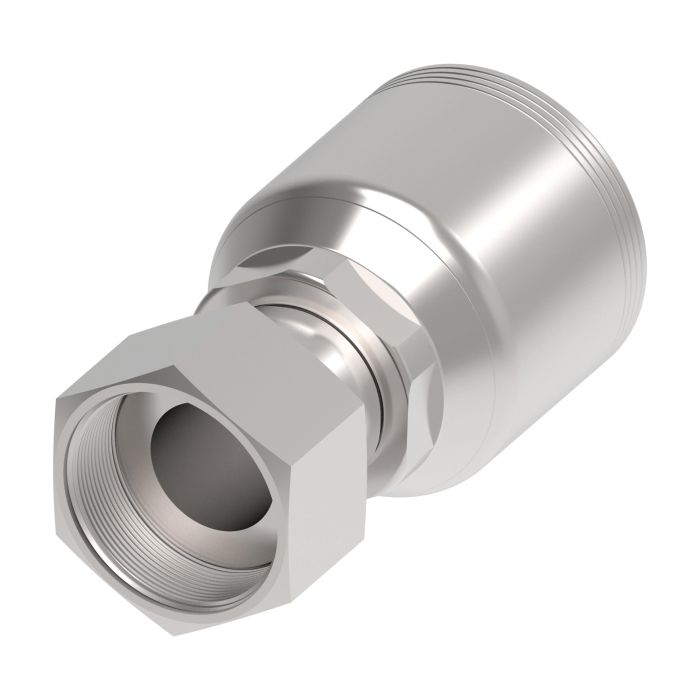

Danfoss / Eaton Aeroquip 4-Wire Spiral TTC Fitting

Description & Features

Danfoss / Eaton Aeroquip 4-Wire Spiral TTC Fitting is designed to provide superior performance and extended hose assembly life. The innovative construction of this fitting ensures maximum uptime and is system engineered to meet rigorous demands.

Constructed from high-quality carbon steel it features Dura-Kote plating for exceptional corrosion resistance making it a reliable choice for various industrial applications.

This fitting conforms to SAE J1176 standards and is designed for female ORS swivel connections ensuring compatibility with a wide range of hoses and tubes. The fitting has an end type of Line/Hose/Tube and a hex size of 1.875 inches.

With a hose dash size of -16 it fits perfectly into the designated systems ensuring secure and dependable connections. Its robust design and quality materials contribute to the long service life of the assembly.

MPN: EAR99 Supplier Part Number: 4SA20FR16

Specifications

Brand Aeroquip® by Danfoss	a Dimensions 3.24 in	Compatible Hose ID 1 in	Connection Size 1 1 in	Connection Size 2 1-1/4 in	Connection Type Female ORFS Swivel, Hose	Connection Type 1 Hose	Connection Type 2 Female ORFS Swivel	Construction Style Crimp	Cut-Off Factor 1.68 in	Dimension Standards SAE J1176	Dimensions 3.4 in L x 2.084 in W x 2.16 in H	End Gender 1 Female	End Size 1 20	Finish Dura-Kote™	Fitting Type Hose Fitting	For Use With H430, H430R, H525H, H471, H810L, H600, H464 and H850 Series Hoses	Hex Size 1.875 x 1.614 in	Hose Dash Size 16	Inside Diameter 0.76 in	Material Steel	Material Construction Carbon Steel	nmfc 50	Segment Code A	Series 4S Series	Thread Sealant Without Thread Sealant	Thread Size 1-11/16-12	Thread Type UN

Product Questions & Answers (2)

Question by: Frank H on Jan 26, 2026, 7:35 AM

Does this fitting work with a -16 hose on a 4-wire spiral assembly, or is it sized different than what I'm thinking?

Answer by: Customer Support on Jan 27, 2026, 6:37 PM

For 4-wire spiral hose assemblies, the dash size on this fitting is -16, so if your hose is spec'd at -16, you're in the right place. The end connection is a female ORS swivel, and the hex comes in at 1.875 inches. Carbon steel construction with Dura-Kote plating keeps corrosion from becoming a problem over time, which matters a lot when you're running a system that needs to stay tight and dependable between service intervals.

Question by: Melvin B on Nov 27, 2025, 6:12 AM

Will this fitting hold up to a good bit of vibration in heavy equipment, or should I be looking at something else?

Answer by: Customer Support on Nov 29, 2025, 6:45 AM

Dura-Kote plating on this Eaton Aeroquip fitting provides superior corrosion resistance, and the fitting is system-engineered to extend hose assembly life, which should help it hold up well to vibration.
