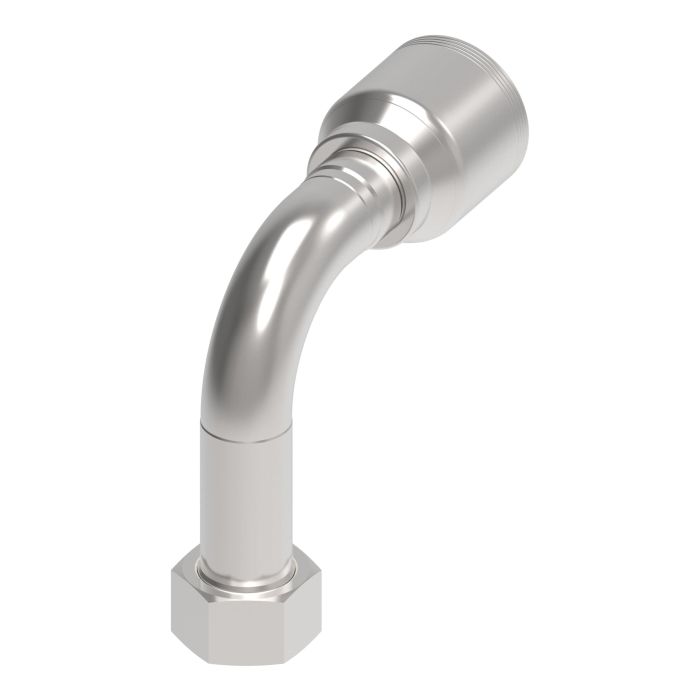

Danfoss / Eaton Aeroquip 4-Wire Spiral TTC Fitting

Description & Features

The Danfoss / Eaton Aeroquip 4-Wire Spiral TTC Fitting is engineered to deliver exceptional durability and efficiency. Featuring Dura-Kote plating it provides superior corrosion resistance ensuring a long operational life. This fitting is designed to meet SAE J1176 certifications highlighting its credibility in robust applications.

Constructed from high-quality carbon steel the fitting is suited for demanding industrial environments where reliability is crucial. The innovative design maximizes performance and uptime extending the life of hose assemblies. This product is specifically crafted to support female ORS end types and with a hose dash size of -20 making it highly versatile for various requirements.

Supplier Part Number: 4SA20FRC20

Specifications

Brand Aeroquip® by Danfoss	a Dimensions 6.02 in	Compatible Hose ID 1-1/4 in	Connection Size 1 1-1/4 in	Connection Size 2 1-1/4 in	Connection Type Female ORFS Swivel, Hose	Connection Type 1 Hose	Connection Type 2 Female ORFS Swivel	Construction Style Crimp	Cut-Off Factor 3.85 in	Dimension Standards SAE J1176	Dimensions 6.7 in L x 2.46 in W x 6.45 in H	Drop Dimensions 5.08 in	End Gender 1 Female	End Size 1 20	Finish Zinc-Plated	Fitting Type 90 deg Elbow	For Use With H430, H430R, H525H, H471, H810L, H600, H464 and H850 Series Hoses	Hex Size 1-7/8 in	Hose Dash Size 20	Inside Diameter 0.99 in	Material Steel	Material Construction Carbon Steel	nmfc 50	Segment Code A	Series 4S Series	Thread Sealant Without Thread Sealant	Thread Size 1-11/16-12	Thread Type UN

Product Questions & Answers (2)

Question by: Judy A on Feb 20, 2026, 6:57 AM

corrosion's always been a problem with the fittings we run outdoors, what kind of protection does this one have?

Answer by: Customer Support on Feb 21, 2026, 9:40 PM

Dura-Kote plating is applied to this fitting specifically to hold up against corrosion over the long haul. Carbon steel on its own can be a weak point in outdoor or wet environments, but that plating puts a meaningful barrier between the metal and whatever it's exposed to. It's one of the features built into this line to help extend hose assembly life rather than just meet a minimum standard.

Question by: Curt O on Feb 1, 2026, 7:27 AM

Will this fitting work with a standard ORS connection?

Answer by: Customer Support on Feb 3, 2026, 6:13 AM

It's specifically designed to support female ORS end types.
