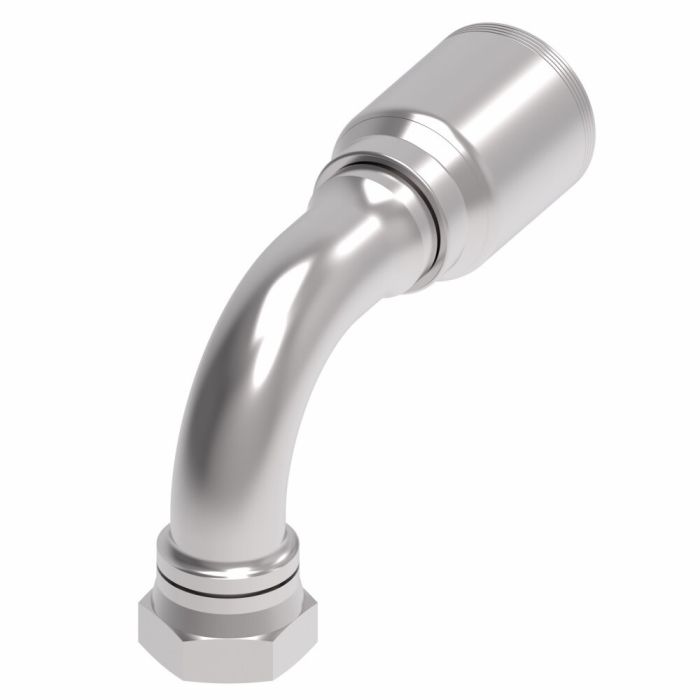

Danfoss / Eaton Aeroquip 4-Wire Spiral TTC Fitting

Description & Features

The Danfoss / Eaton Aeroquip 4-Wire Spiral TTC Fitting features an innovative design to ensure superior performance and maximum uptime. This fitting is constructed with high-quality carbon steel ensuring durability and longevity.

Engineered to extend hose assembly life it incorporates Dura-Kote plating providing exceptional corrosion resistance. This fitting is SAE J1176 certified guaranteeing compliance with industry standards.

Designed with a female JIC 37 end type and a hose dash size of -24 it is suitable for various industrial applications. The product dimensions include a drop dimension of 4.0900 and a width of 2.82.

MPN: EAR99

Supplier Part Number: 4SA24FJB24

Specifications

Brand Aeroquip® by Danfoss	a Dimensions 8.22 in	Compatible Hose ID 1-1/2 in	Connection Size 1 1-1/2 in	Connection Size 2 1-1/2 in	Connection Type Female JIC Swivel, Hose	Connection Type 1 Hose	Connection Type 2 Female SAE 37 deg JIC Swivel	Construction Style Crimp	Cut-Off Factor 5.15 in	Dimension Standards SAE J1176	Dimensions 9.43 in L x 2.823 in W x 6.25 in H	Drop Dimensions 4.09 in	End Gender 1 Female	End Size 1 24	Finish Dura-Kote™	Fitting Type 90 deg Elbow	For Use With H430, H430R, H525H, H471, H810L, H600, H464 and H850 Series Hoses	Hex Size 2-1/4 in	Hose Dash Size 24	Inside Diameter 1.22 in	Material Steel	Material Construction Carbon Steel	Segment Code A	Series 4S Series	Thread Sealant Without Thread Sealant	Thread Size 1-7/8-12	Thread Type UN

Product Questions & Answers (2)

Question by: Denise G on Sep 8, 2025, 9:45 AM

What kind of hose is this fitting meant to go on? I'm using 4-wire spiral hose.

Answer by: Customer Support on Sep 9, 2025, 7:10 PM

This fitting is specifically designed for use with 4-wire spiral hose, ensuring a secure and reliable connection.

Question by: Brett J on May 25, 2025, 12:19 PM

does the Dura-Kote plating on this fitting hold up decent in environments where corrosion is a real concern, or is that more of a marketing thing

Answer by: Customer Support on May 27, 2025, 8:32 AM

Dura-Kote is a legitimate corrosion-resistant plating applied to the carbon steel body, not just a label. It's specifically engineered into this fitting to extend the working life of the hose assembly in conditions where rust and surface degradation would otherwise be a problem. Carbon steel on its own is vulnerable over time, so the plating does real work here.
