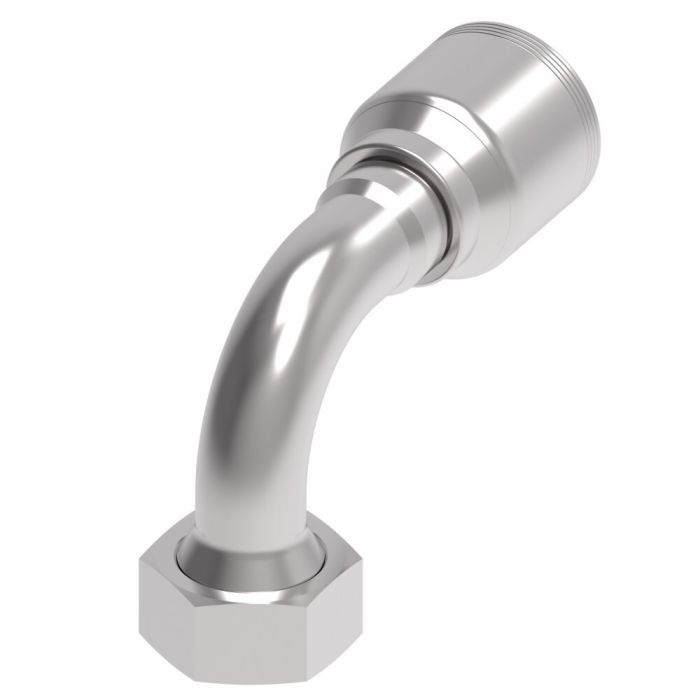

DANFOSS / EATON FTNG 4 SPRL ORS

Description & Features

Danfoss Power Solutions (II LLC Aeroquip) brings you the DANFOSS / EATON FTNG 4 SPRL ORS a robust hose fitting designed for industrial use. Constructed from durable carbon steel this fitting includes Dura-Kote plating for superior corrosion resistance ensuring longevity and reliability.

Engineered to extend hose assembly life it integrates an innovative design that delivers high performance and maximum uptime. Meeting SAE J1176 certification it assures compliance with industry standards. The fitting features a female ORS end type with an end size of 2 and a line/hose/tube end type making it suitable for various applications.

With a drop dimension of 3.3900 and product width of 2.46 this fitting is built to precise specifications for optimal functionality. Specifically designed for use in demanding environments it does not include any adjustable components battery or calibration tools.

Supplier Part Number: 4SA24FRB20

Specifications

Brand Aeroquip® by Danfoss	a Dimensions 6.02 in	Compatible Hose ID 1-1/4 in	Connection Size 1 1-1/4 in	Connection Size 2 1-1/2 in	Connection Type Female ORFS Swivel, Hose	Connection Type 1 Hose	Connection Type 2 Female ORFS Swivel	Construction Style Crimp	Cut-Off Factor 3.85 in	Dimension Standards SAE J1176	Dimensions 7.15 in L x 2.457 in W x 5.4 in H	Drop Dimensions 3.39 in	End Gender 1 Female	End Size 1 2 in	Finish Zinc-Plated	Fitting Type 90 deg Elbow	For Use With H430, H430R, H525H, H471, H810L, H600, H464 and H850 Series Hoses	Hex Size 2-1/4 in	Hose Dash Size 20	Inside Diameter 0.99 in	Material Steel	Material Construction Carbon Steel	nmfc 50	Segment Code A	Series 4S Series	Thread Sealant Without Thread Sealant	Thread Size 2-12	Thread Type UN

Product Questions & Answers (2)

Question by: Ricky F on Sep 23, 2025, 8:50 PM

got a -20 hose, is this fitting the right dash size or am i mixing stuff up

Answer by: Customer Support on Sep 25, 2025, 7:29 PM

For hose size, it’s set up for a -20 hose dash size. The end is a female ORS with end size 2, and the other end is listed as line/hose/tube.

Question by: Rhonda O on May 5, 2025, 10:19 AM

Is this fitting okay to use in hydraulic systems that meet SAE J1176 standards?

Answer by: Customer Support on May 6, 2025, 4:05 PM

Absolutely, this fitting is certified to meet SAE J1176 standards, ensuring it complies with industry requirements for hydraulic hose fittings.
