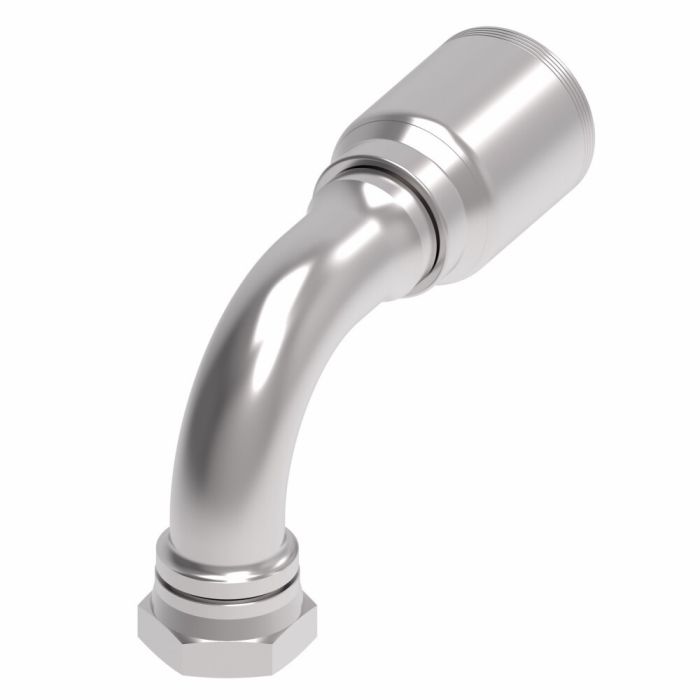

Female ORS Swivel 90° Elbow

Description & Features

The Female ORS Swivel 90 Elbow by Danfoss Power Solutions ensures reliability in demanding applications. This fitting is constructed from high-quality carbon steel and supports superior corrosion resistance due to its Dura-Kote plating.

Designed to comply with SAE J1176 certifications the product features an innovative design aimed at delivering maximum uptime and performance. Specifically engineered to extend the lifespan of hose assemblies this fitting features an ORS connection on one end and accommodates line/hose/tube connections making it a versatile choice for industrial use.

With a hose dash size of -24 and a drop dimension of 4.0900 this elbow fitting is precise in its specifications ensuring it meets stringent industrial standards. The product's product width measures 2.82 inches making it suitable for various installations requiring durable and efficient fittings.

Supplier Part Number: 4SA24FRB24

Specifications

Brand Aeroquip® by Danfoss	a Dimensions 8.22 in	Compatible Hose ID 1-1/2 in	Connection Size 1 1-1/2 in	Connection Size 2 1-1/2 in	Connection Type Female ORFS Swivel, Hose	Connection Type 1 Hose	Connection Type 2 Female ORFS Swivel	Construction Style Crimp	Cut-Off Factor 5.15 in	Dimension Standards SAE J1176	Dimensions 9.35 in L x 2.82 in W x 6.08 in H	Drop Dimensions 4.09 in	End Gender 1 Female	End Size 1 2 in	Finish Dura-Kote™	Fitting Type 90 deg Elbow	For Use With H430, H430R, H525H, H471, H810L, H600, H464 and H850 Series Hoses	Hex Size 2-1/4 in	Hose Dash Size 24	Inside Diameter 1.22 in	Material Steel	Material Construction Carbon Steel	Segment Code A	Series 4S Series	Thread Sealant Without Thread Sealant	Thread Size 2-12	Thread Type UN

Product Questions & Answers (1)

Question by: Clint P on Apr 19, 2025, 8:12 PM

Will this fitting hold up okay in a hydraulic system that runs pretty much all day, every day?

Answer by: Customer Support on Apr 21, 2025, 6:48 AM

Dura-Kote plating gives this fitting good corrosion resistance, so it should be reliable even with extended use in demanding hydraulic applications.
