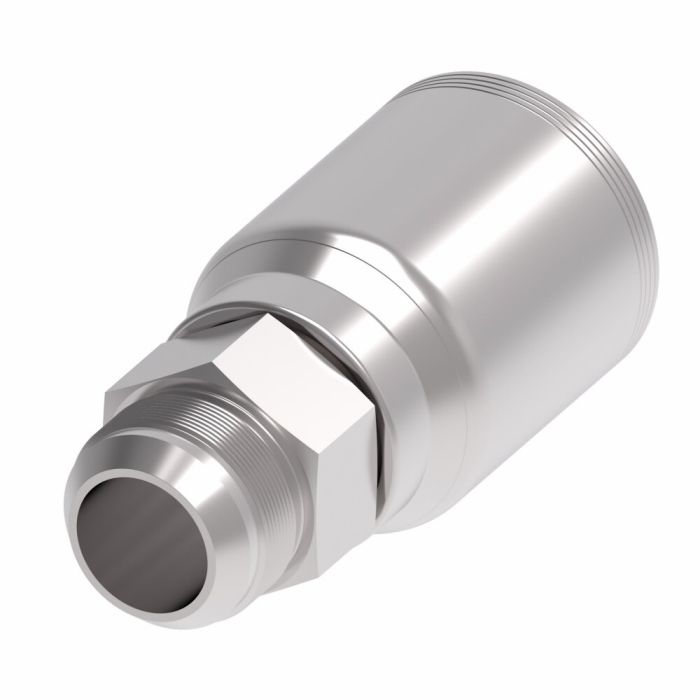

Danfoss / Eaton Aeroquip 4-Wire Spiral TTC Fitting

Description & Features

The Eaton Aeroquip 4-Wire Spiral TTC Fitting ensures durability and long-lasting performance in demanding hydraulic applications. Engineered with a male JIC 37-degree flare connection, this fitting provides a reliable and leak-free seal when connecting hoses, tubes, or lines. Its carbon steel construction, coupled with Dura-Kote plating, offers superior corrosion resistance, making it suitable for harsh industrial environments.

Certified to meet SAE J1176 standards, this fitting is designed to extend hose assembly life and maximize uptime. The innovative design reflects Eaton Aeroquip's commitment to quality and performance, making it an ideal choice for high-pressure hydraulic systems. It is poised to meet your operational needs efficiently.

SKU: 4SA24MJ24

Supplier Part Number (MPN): 4SA24MJ24

Alternate Part Numbers: MI-08051830, MINO-00015X01448

Specifications

Brand Aeroquip® by Danfoss	a Dimensions 5.96 in	Compatible Hose ID 1-1/2 in	Connection Size 1 1-1/2 in	Connection Size 2 1-1/2 in	Connection Type Hose, Male JIC	Connection Type 1 Hose	Connection Type 2 Male SAE 37 deg JIC	Construction Style Crimp	Cut-Off Factor 2.89 in	Dimension Standards SAE J1176	Dimensions 6 in L x 2.823 in W x 2.823 in H	End Gender 1 Male	End Size 1 24	Finish Dura-Kote™	Fitting Type Hose Fitting	For Use With H430, H430R, H525H, H471, H810L, H600, H464 and H850 Series Hoses	Hex Size 1.97 in	Hose Dash Size 24	Inside Diameter 1.22 in	Material Steel	Material Construction Carbon Steel	nmfc 50	Seal Material EPDM	Segment Code A	Series 4S Series	Thread Sealant Without Thread Sealant	Thread Size 1-7/8-12	Thread Type UN

Product Questions & Answers (1)

Question by: Darryl F on Oct 12, 2025, 8:43 AM

Will this fitting work with a standard JIC 37 degree flare? Just want to make sure before I order.

Answer by: Customer Support on Oct 14, 2025, 7:15 AM

This Eaton Aeroquip fitting is indeed designed with a male JIC 37-degree end, so it should fit as expected.
