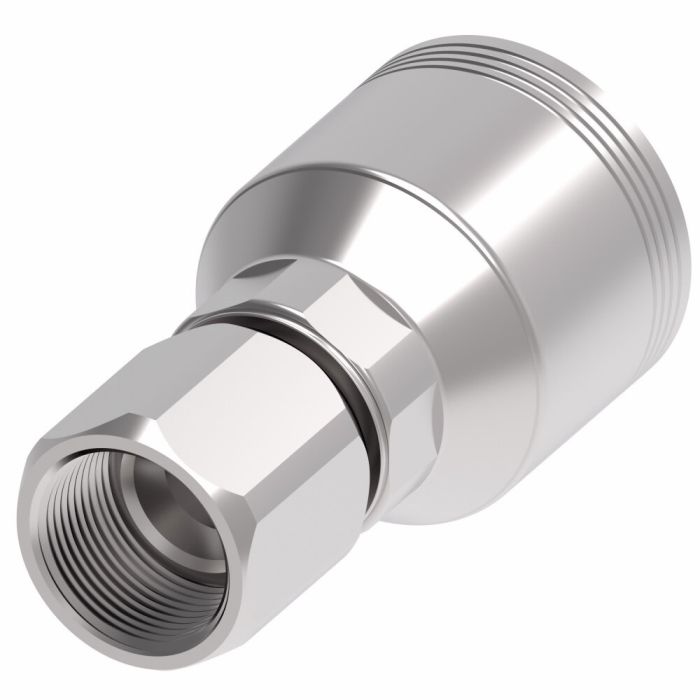

DANFOSS / EATON FITTING 4-SPRL SAE 37

Ask A Question

Description & Features

The Danfoss / Eaton 4S Series Crimp Hose Fittings Female JIC/37 Swivel is engineered for optimal performance and maximum uptime. Its Dura-Kote plating ensures superior corrosion resistance extending the lifespan of your hose assembly. These fittings are compliant with SAE J1176 standards and crafted from durable carbon steel material making them a reliable choice for demanding industrial applications.

Brand: Danfoss Power Solutions (II LLC Aeroquip)

Supplier Part Number: 4SA6FJ6

End Type 1: JIC 37

End Gender 1: Female

End Size 1: 0.5625

Hose Dash Size: -6

Product Width: 1.16

Designed without adjustable components the fitting remains easy to install and maintain. Its system-engineered to support various hose types enhancing the efficiency and durability of your installations. The innovative design caters to diverse industrial needs delivering reliable performance across different settings.

Specifications

Brand
Aeroquip® by Danfoss
a Dimensions
2.09 in
Compatible Hose ID
0.38 in
Connection Size 1
3/8 in
Connection Size 2
3/8 in
Connection Type
Female JIC Swivel, Hose
Connection Type 1
Hose
Connection Type 2
Female SAE 37 deg JIC Swivel
Construction Style
Crimp
Cut-Off Factor
1.27 in
Dimension Standards
SAE J1176
Dimensions
2.12 in L x 1.158 in W x 1.158 in H
End Gender 1
Female
End Size 1
9/16 in
Finish
Dura-Kote™
Fitting Type
Hose Fitting
For Use With
H430, H430R, H525H, H471, H810L, H600, H464 and H850 Series Hoses
Hex Size
11/16 in
Hose Dash Size
06
Inside Diameter
0.26 in
Material
Steel
Material Construction
Carbon Steel
nmfc
50
Segment Code
A
Series
4S Series
Thread Sealant
Without Thread Sealant
Thread Size
9/16-18
Thread Type
UNF

Product Questions & Answers (2)

Question by: Freddie O on Dec 3, 2025, 12:32 PM
I need a JIC 37 fitting, but I keep messing up the size. How do I measure this to make sure it fits my -6 hose?
Answer by: Customer Support on Dec 5, 2025, 6:29 AM
This fitting is designed for a -6 hose, which corresponds to an end size of 0.5625 inches.
Question by: Gary M on May 31, 2025, 9:43 PM
fitting says it's a -6 hose dash size with a 37 degree JIC female end -- just want to make sure that lines up with standard half-inch JIC swivel connections before I order a handful of these
Answer by: Customer Support on Jun 2, 2025, 4:59 PM
The end size on this fitting is 0.5625 inches, which is your standard 9/16 thread used with -6 JIC connections. The female swivel end is cut at 37 degrees per JIC spec, so it'll mate up correctly with standard male JIC 37-degree fittings. The swivel design also makes it a lot easier to get everything lined up without twisting the hose during installation.
