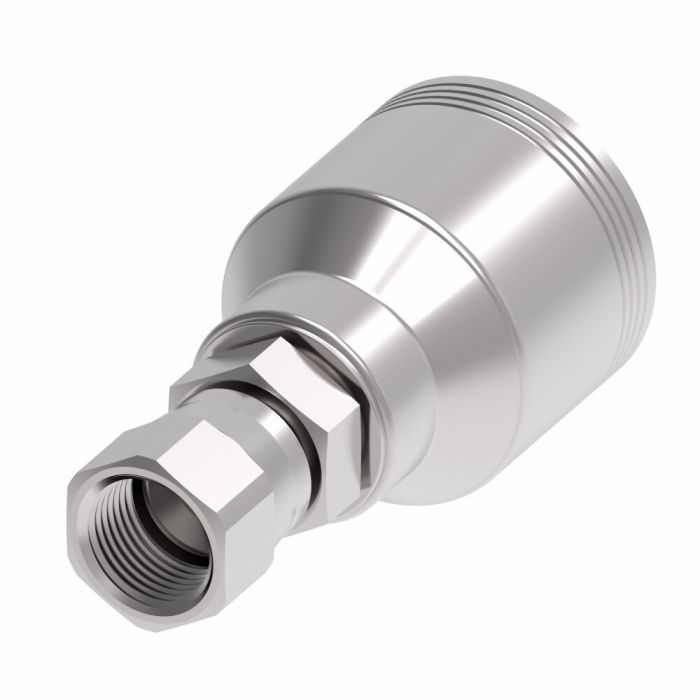

Danfoss / Eaton Fitting (Perm) 4-SPRL

Ask A Question

Description & Features

Danfoss / Eaton 4S Series Crimp Hose Fittings Female JIC/37 Swivel represent a leading solution tailored for industrial hose applications. These fittings feature Dura-Kote plating ensuring unmatched corrosion resistance and longevity. The design is fine-tuned to deliver superior performance guaranteeing maximum uptime in demanding environments.

MPN: 4SA6FJ8

Supplier Part Number: 4SA6FJ8

SAE J1176 certification underscores the high standards met by these fittings. Constructed from durable carbon steel they boast an end type of JIC 37 and are designed to fit a hose dash size of -8. With a female end gender and a hex size of 0.69 this component is engineered for reliability and long-term service.

The fittings' system-engineered approach ensures extended hose assembly life making them a crucial component for industrial machinery and equipment. Available in a product width of 1.38 these fittings are non-adjustable and do not include additional features such as a check valve or thread sealant.

Specifications

Brand
Aeroquip® by Danfoss
a Dimensions
2.69 in
Compatible Hose ID
1/2 in
Connection Size 1
1/2 in
Connection Size 2
3/8 in
Connection Type
Female JIC Swivel, Hose
Connection Type 1
Hose
Connection Type 2
Female SAE 37 deg JIC Swivel
Construction Style
Crimp
Cut-Off Factor
1-1/2 in
Dimension Standards
SAE J1176
Dimensions
2.69 in L
End Connection Torque
18 to 20 lb-ft
End Gender 1
Female
End Size 1
9/16 in
Finish
Dura-Kote™
Fitting Type
Hose Fitting
For Use With
H430, H430R, H525H, H471, H810L, H600, H464 and H850 Series Hoses
Hex Size
11/16 in
Hose Dash Size
08
Inside Diameter
0.38 in
Manufacturing Cage Code
VAN WERT OH - 0X660
Material
Steel
Material Construction
Carbon Steel
nmfc
50
Series
4S Series
Thread Sealant
Without Thread Sealant
Thread Size
9/16-18
Thread Type
UNF

Product Questions & Answers (2)

Question by: Danny W on Sep 27, 2025, 1:38 PM
Can this fitting handle some serious pressure without leaking or failing?
Answer by: Customer Support on Sep 29, 2025, 6:00 AM
Designed to deliver performance and maximum uptime, this fitting should hold up well in demanding industrial environments, assuming it's used within its intended specifications.
Question by: Frank E on Oct 14, 2025, 6:02 PM
got a -8 hose im crimpin up, is this the right fitting if i need a female jic swivel?
Answer by: Customer Support on Oct 16, 2025, 2:25 PM
For a -8 hose, this one matches that dash size and it is a female JIC 37 degree swivel fitting in the Danfoss and Eaton 4S Series, so it fits the use case you described.
