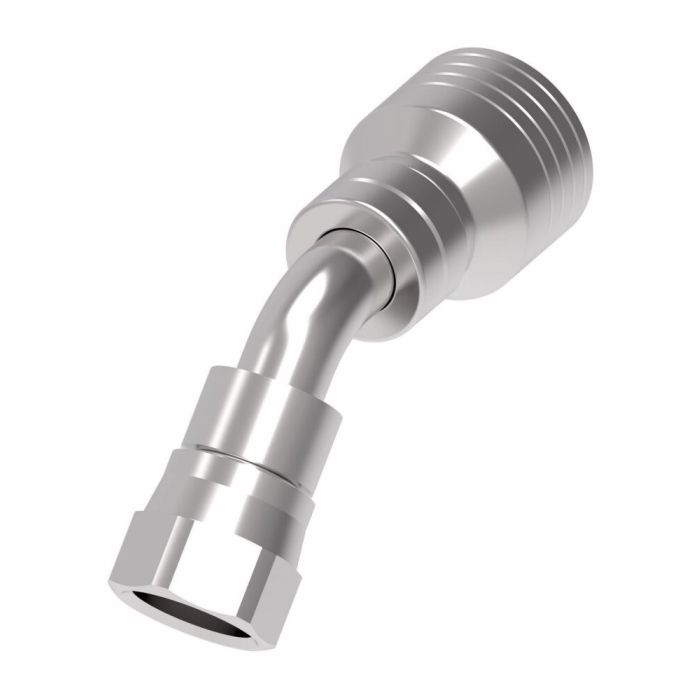

DANFOSS / EATON 4-SPRL SAE 37 ELBOW 45 DEG

Ask A Question

Description & Features

The Eaton 4-SPRL SAE 37 elbow 45-degree fitting is a robust component engineered for high-performance hydraulic systems. Manufactured from carbon steel this fitting features Dura-Kote plating providing superior corrosion resistance and ensuring longevity under harsh conditions.

Designed to meet SAE J1176 certification standards the fitting is system-engineered to extend hose assembly life. It incorporates an innovative design that enhances efficiency and reliability maximizing uptime for industrial applications.

With a 0.75-inch female JIC 37 end this fitting is optimized for seamless integration with various line hose or tube systems. The drop dimension of 0.5500 and product width of 1.16 inches make it a compact yet essential component.

Supplier Part Number: 4SA8FJA6

Specifications

Brand
Aeroquip® by Danfoss
a Dimensions
2-1/2 in
Compatible Hose ID
0.38 in
Connection Size 1
3/8 in
Connection Size 2
1/2 in
Connection Type
Female JIC Swivel, Hose
Connection Type 1
Hose
Connection Type 2
Female SAE 37 deg JIC Swivel
Construction Style
Crimp
Cut-Off Factor
1.66 in
Dimension Standards
SAE J1176
Dimensions
3.48 in L x 1.158 in W x 2.01 in H
Drop Dimensions
0.55 in
End Gender 1
Female
End Size 1
3/4 in
Finish
Dura-Kote™
Fitting Type
45 deg Elbow
For Use With
H430, H430R, H525H, H471, H810L, H600, H464 and H850 Series Hoses
Hex Size
7/8 in
Hose Dash Size
06
Inside Diameter
0.26 in
Material
Steel
Material Construction
Carbon Steel
nmfc
50
Segment Code
A
Series
4S Series
Thread Sealant
Without Thread Sealant
Thread Size
3/4-16
Thread Type
UNF

Product Questions & Answers (2)

Question by: Rhonda R on Sep 29, 2025, 5:36 PM
trying to swap out a 90 with a 45, what exactly are the ends on this fitting?
Answer by: Customer Support on Sep 30, 2025, 5:49 PM
On the fitting end, it has a 0.75 inch female JIC 37 connection. The other side is intended to tie into a line, hose, or tube, and the body is a 45 degree elbow.
Question by: Lance W on Dec 16, 2025, 3:48 PM
fitting's made of carbon steel, does it hold up decent in wet or real grimy environments?
Answer by: Customer Support on Dec 18, 2025, 2:02 PM
Dura-Kote plating covers the exterior, and that coating is specifically there to fight corrosion. Carbon steel on its own wouldn't be the first choice in constantly wet or chemical-heavy conditions, but with that plating in place this fitting is built to hold up under the kind of harsh, dirty environments you'd run into in heavy industrial work. It's not a stainless piece, but the corrosion protection is a real feature, not just a label.
