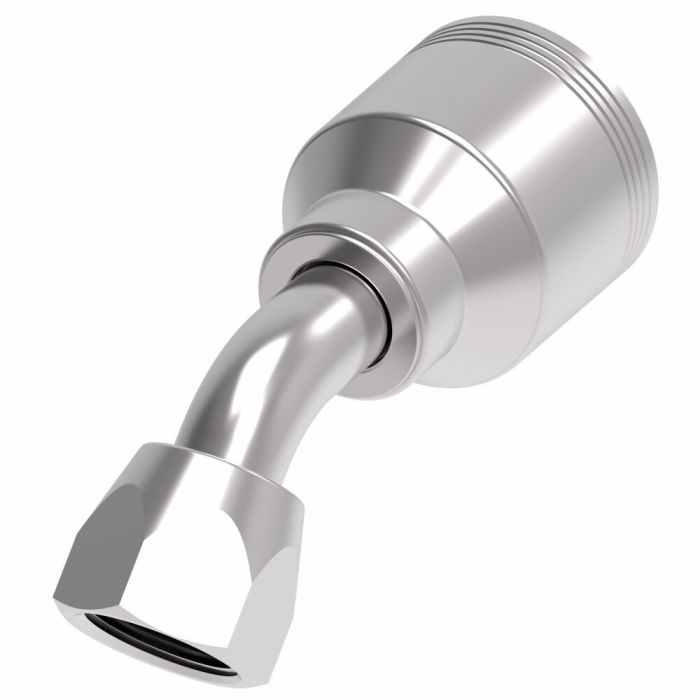

DANFOSS / EATON FTNG PERM 4-SPRL SAE 37

Ask A Question

Description & Features

The Eaton FTNG Perm 4-SPRL SAE 37 is a reliable fitting solution designed to meet industry standards. Its Dura-Kote plating ensures superior corrosion resistance making it suitable for various industrial applications. The innovative design delivers exceptional performance and maximum uptime.

The fitting is certified under SAE J1176 indicating high-quality manufacturing standards. It features a female end gender with a 0.75 end size and JIC 37 end type ensuring compatibility with a wide range of equipment. Constructed from durable carbon steel this fitting offers robustness and longevity.

Engineered to extend the life of hose assemblies this fitting does not require a mandrel making installation straightforward. The product dimensions include a 0.5500 drop dimension and a 1.34 width. This ensures that it is versatile enough for various industrial setups.

ECCN: EAR99

Supplier Part Number: 4SA8FJA8

Specifications

Brand
Aeroquip® by Danfoss
a Dimensions
2.87 in
Compatible Hose ID
1/2 in
Connection Size 1
1/2 in
Connection Size 2
1/2 in
Connection Type
Female JIC Swivel, Hose
Connection Type 1
Hose
Connection Type 2
Female SAE 37 deg JIC Swivel
Construction Style
Crimp
Cut-Off Factor
1.68 in
Dimension Standards
SAE J1176
Dimensions
3.8 in L x 1.34 in W x 2.11 in H
Drop Dimensions
0.55 in
End Gender 1
Female
End Size 1
3/4 in
Finish
Zinc-Plated
Fitting Type
45 deg Elbow
For Use With
H430, H430R, H525H, H471, H810L, H600, H464 and H850 Series Hoses
Hex Size
7/8 in
Hose Dash Size
08
Inside Diameter
0.37 in
Material
Steel
Material Construction
Carbon Steel
nmfc
50
Segment Code
A
Series
4S Series
Thread Sealant
Without Thread Sealant
Thread Size
3/4-16
Thread Type
UNF

Product Questions & Answers (2)

Question by: Neil P on Nov 23, 2025, 7:50 AM
Will this fitting hold up to some serious pressure in a hydraulic system, or is it more for light-duty stuff?
Answer by: Customer Support on Nov 24, 2025, 12:27 PM
Dura-Kote plating gives this Eaton fitting excellent corrosion resistance, so it will definitely hold up in demanding hydraulic applications where you need maximum uptime.
Question by: Bonnie C on Oct 5, 2025, 9:29 AM
got a -8 hose with a JIC 37 end, is this 4SA8FJA8 the right female fitting for it?
Answer by: Customer Support on Oct 6, 2025, 3:03 PM
For a -8 hose (dash size -8) that needs a female JIC 37 connection, this fitting matches that setup. It’s a permanent fitting assembly with End Gender listed as female and End Type 1 as JIC 37 with End Size 1 at 0.75.
