main product photo

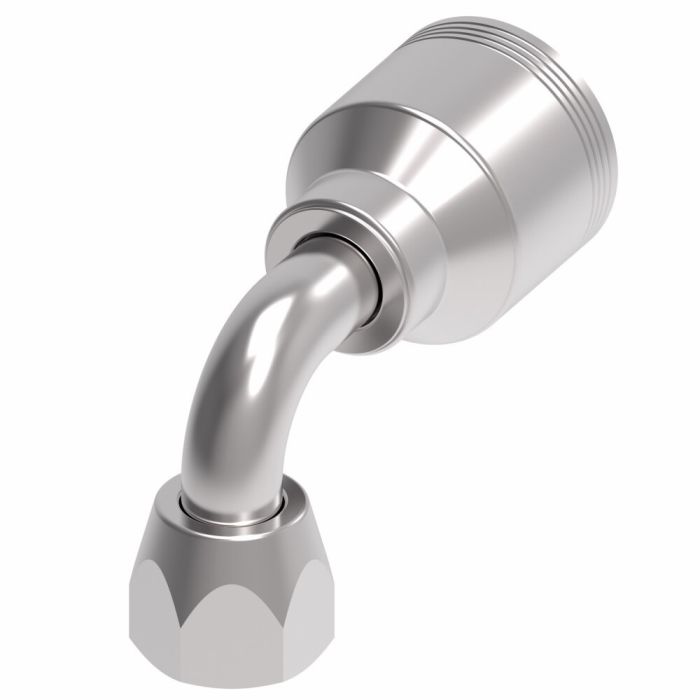

DANFOSS / EATON FTNG PERM 4-SPRL SAE 37-

Ask A Question

Description & Features

The DANFOSS / EATON FTNG PERM 4-SPRL SAE 37- is an engineered hose fitting designed to ensure maximum uptime and performance. Featuring Dura-Kote plating it delivers premium corrosion resistance extending the life of your hose assembly.

Constructed from carbon steel this hose fitting meets SAE J1176 certification standards ensuring reliability in industrial applications. The female end has a 0.75 size and JIC 37 type adapting seamlessly to diverse industrial needs.

This product is part of the DANFOSS Power Solutions range known for innovative design and material quality. It is engineered for line hose or tube end types making it versatile for various installations. With a product width of 1.34 inches and a drop dimension of 1.0900 it provides practical dimensions for installation and utilization.

Supplier Part Number: 4SA8FJB8

ECCN: EAR99

Specifications

Brand
Aeroquip® by Danfoss
a Dimensions
2.64 in
Compatible Hose ID
1/2 in
Connection Size 1
1/2 in
Connection Size 2
1/2 in
Connection Type
Female JIC Swivel, Hose
Connection Type 1
Hose
Connection Type 2
Female SAE 37 deg JIC Swivel
Construction Style
Crimp
Cut-Off Factor
1.44 in
Dimension Standards
SAE J1176
Dimensions
2.78 in L x 1.34 in W x 2.21 in H
Drop Dimensions
1.09 in
End Gender 1
Female
End Size 1
3/4 in
Finish
Zinc-Plated
Fitting Type
90 deg Elbow
For Use With
H430, H430R, H525H, H471, H810L, H600, H464 and H850 Series Hoses
Hex Size
7/8 in
Hose Dash Size
08
Inside Diameter
0.37 in
Material
Steel
Material Construction
Carbon Steel
nmfc
50
Segment Code
A
Series
4S Series
Thread Sealant
Without Thread Sealant
Thread Size
3/4-16
Thread Type
UNF

Product Questions & Answers (2)

Question by: Keith P on Jul 9, 2025, 10:35 AM
trying to match up a hose end, is this one the -8 dash with a 3/4 female JIC 37 on it?
Answer by: Customer Support on Jul 10, 2025, 7:35 PM
It’s a -8 hose dash size fitting with a female end that’s size 0.75 and uses a JIC 37 connection type.
Question by: Kirk W on Mar 18, 2026, 8:46 PM
Reckon this fitting will hold up to some serious vibration on a piece of heavy equipment?
Answer by: Customer Support on Mar 20, 2026, 3:13 PM
Dura-Kote plating helps this fitting resist corrosion, which can be worsened by vibration. It's also built from carbon steel and meets SAE J1176 standards, pointing to its overall reliability.
