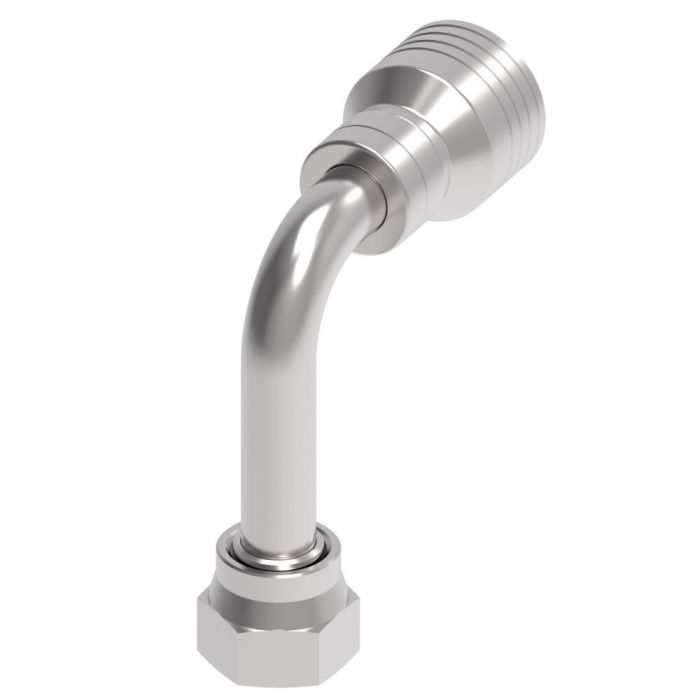

A -6 hose dash size crimp fitting configured as a 90° long drop elbow, the Fitting (Perm) 4S connects a female ORS swivel end to a hose assembly with a 2.55-inch drop dimension. Constructed from carbon steel and finished with Dura-Kote plating, the fitting is built to resist corrosion in demanding hydraulic service environments. The ORS swivel end provides a reliable, leak-resistant connection suited to high-cycle and high-pressure hydraulic hose assemblies.
Engineered as part of the Aeroquip 4S series permanent crimp system, this fitting is designed to extend hose assembly service life and support maximum system uptime. It meets SAE J1176 certification requirements. With a package weight of 1.32 lb and a 0.8125-inch end size, it is a practical choice for hydraulic circuit routing where directional changes and clearance constraints require a long-drop elbow configuration.
SKU: 4SA8FRC6
Supplier Part Number (MPN): 4SA8FRC6
|
Alternate Part Numbers
MINO-00925X11171
|
Certifications
SAE J1176
|
Drop Dimension
2.55
|
Brand
Danfoss Power Solutions (II LLC Aeroquip)
|
Brand
Aeroquip
|
Pack Size
1.00
|
UOM
EA
|
End Gender 1
13553
|
End Size 1
0.81
|
End Type 1
ORS
|
End Type 2
Line/Hose/Tube
|
Features
Dura-Kote plating for superior corrosion resistance|Innovative design to deliver performance and maximum uptime|System engineered to extend hose assembly life
|
Hose Dash Size
-6
|
ICC
Hose Fittings
|
Item Type
Fitting Assembly
|
Language
English
|
Net Pack Quantity Units
EA
|
NMFC
50
|
Product Material
Carbon Steel
|
Product Width
1.16
|
Sub Brand
None
|
Supplier Part Number
4SA8FRC6
|
Product Weight
0.32 lbs
|
