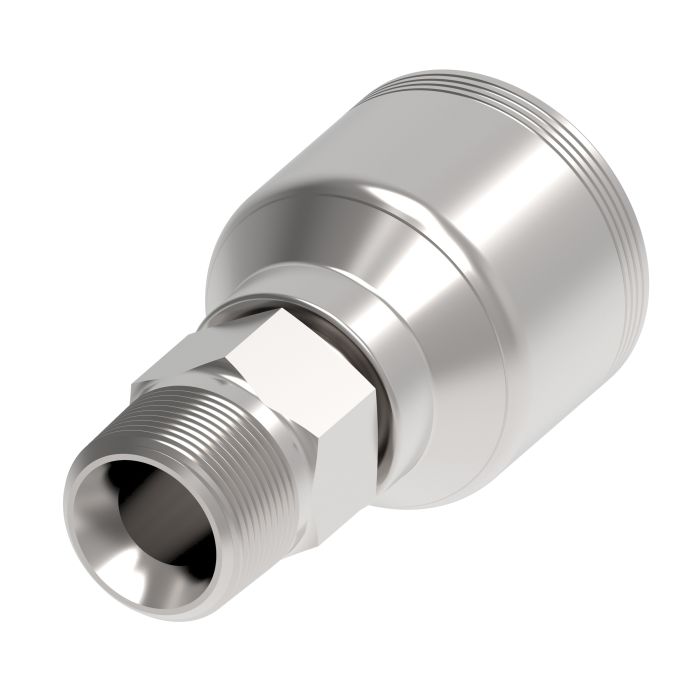

Ftng (perm), 4-sprl

Ask A Question

Description & Features

Designed for use with -6 dash size hose, this carbon steel crimp hose fitting from Aeroquip's 4S Series connects a 1/2 in. NPTF male pipe end to a hose or line end. The Ftng (perm), 4-sprl is a permanent-style fitting assembly built to SAE J1176 standards, making it a reliable choice for hydraulic hose assembly applications where a secure, leak-resistant connection is required.

Dura-Kote plating provides strong corrosion resistance across demanding service environments. The fitting's system-engineered design supports extended hose assembly life and is intended to minimize unplanned downtime. Thread sealant is included.

SKU: 4SA8MP6

Supplier Part Number (MPN): 4SA8MP6

Specifications

Brand
Aeroquip® by Danfoss
a Dimensions
2.11 in
Compatible Hose ID
0.38 in
Connection Size 1
3/8 in
Connection Size 2
1/2 in
Connection Type
Hose, MNPT
Connection Type 1
Hose
Connection Type 2
Male NPTF
Construction Style
Crimp
Cut-Off Factor
1.28 in
Dimension Standards
SAE J1176
Dimensions
2.27 in L x 1.158 in W x 1.158 in H
End Gender 1
Male
End Size 1
1/2 in
Finish
Dura-Kote™
Fitting Type
Hose Fitting
For Use With
H430, H430R, H525H, H471, H810L, H600, H464 and H850 Series Hoses
Hex Size
7/8 in
Hose Dash Size
06
Inside Diameter
6.7 mm
Material
Steel
Material Construction
Carbon Steel
nmfc
50
Segment Code
A
Series
4S Series
Thread Sealant
With Thread Sealant
Thread Size
1/2-14
Thread Type
NPTF

Product Questions & Answers (1)

Question by: Dustin H on Mar 4, 2026, 3:30 PM
Can I use this with any kind of hydraulic fluid?
Answer by: Customer Support on Mar 6, 2026, 6:57 AM
Fluid compatibility details are available in the provided document link. It's best to consult that to make sure it will work with your system.
