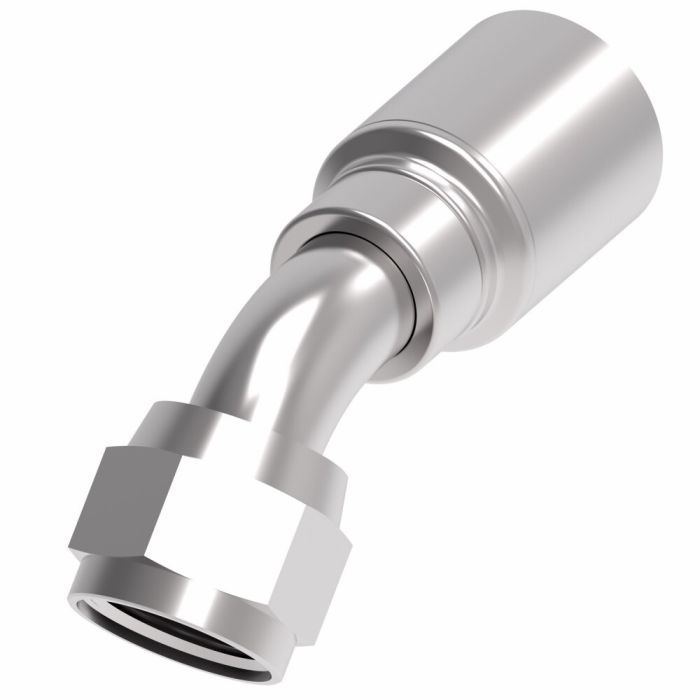

Aeroquip Fitting Perm Thermo

Ask A Question

Description & Features

A JIC 37° female swivel fitting in a 45° elbow configuration, the Aeroquip Fitting Perm Thermo is designed for use with -4 dash size hose and built from carbon steel for durability in demanding hydraulic environments. The female swivel end measures 0.4375 inches and mates with standard JIC 37° connections, while the elbow geometry accommodates routing where straight fittings are not practical.

Finished with Dura-Kote plating, this fitting delivers strong corrosion resistance suited to industrial hydraulic service. The design is system-engineered to extend hose assembly service life and support maximum uptime. With a hex size of 0.56 inches and a drop dimension of 0.3300 inches, it integrates cleanly into standard hose assembly configurations. Package weight is 0.16 lb.

SKU: 4TA4FJA4

Supplier Part Number (MPN): 4TA4FJA4

Specifications

Brand
Synflex Optimum by Danfoss
a Dimensions
1-3/4 in
Compatible Hose ID
1/4 in
Connection Size 1
1/4 in
Connection Size 2
1/4 in
Connection Type
Female JIC Swivel, Hose
Connection Type 1
Hose
Connection Type 2
Female 37 deg JIC Swivel
Construction Style
Crimp
Cut-Off Factor
0.85 in
Drop Dimensions
0.33 in
End Connection Torque
11 to 12 lb-ft
End Gender 1
Female
End Size 1
7/16 in
Finish
Dura-Kote™
Fitting Type
45 deg Elbow
For Use With
3TR18CT, 3TR8, 3TR8N, 3TR7 and 3TR7N Series Hoses
Hex Size
0.563 in
Hose Dash Size
04
Inside Diameter
0.15 in
Material
Steel
Material Construction
Carbon Steel
Series
4T Series
Thread Sealant
Without Thread Sealant
Thread Size
7/16-20
Thread Type
UNF

Product Questions & Answers (1)

Question by: Hubert T on Feb 7, 2026, 7:03 AM
Will this fitting hold up alright in a hydraulic system that sees some pretty tough conditions?
Answer by: Customer Support on Feb 9, 2026, 6:42 AM
Dura-Kote plating gives this Aeroquip fitting good corrosion resistance, so it should last well even when exposed to harsh conditions in hydraulic applications.
