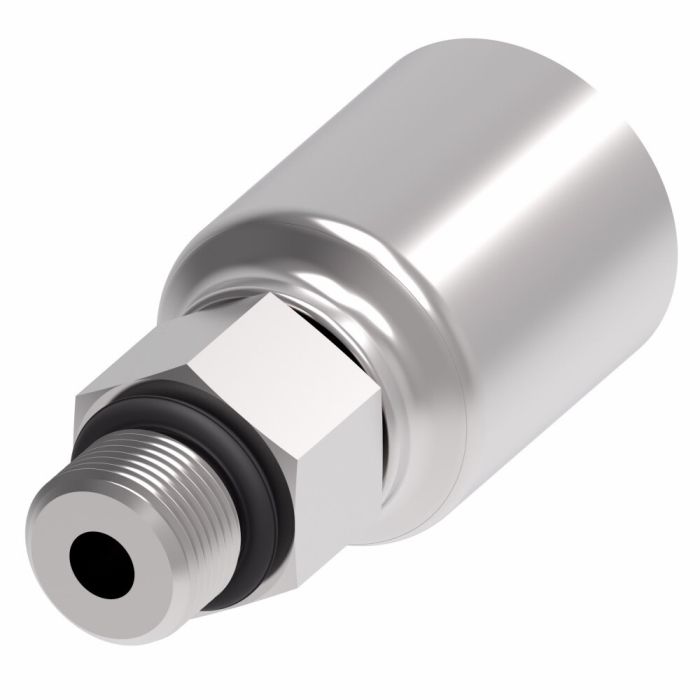

Fitting (Perm) Thermo SAE ORB

Ask A Question

Description & Features

This Aeroquip Fitting (Perm) Thermo SAE ORB features Dura-Kote plating, providing superior corrosion resistance and extending hose assembly life. Its innovative design ensures optimal performance and maximum uptime.

Constructed from carbon steel, this fitting assembly has a male UN end with a 0.5625 size. Designed for use with -4 hose dash size. Synflex Optimum by Danfoss / Eaton 4T Series Crimp Hose Fittings Male Straight Thread O-ring Rigid.

SKU: 4TA6MB4

Supplier Part Number (MPN): 4TA6MB4

Alternate Part Numbers: 90304-06D000-0, 90H04-06D000-0

Specifications

Brand
Synflex Optimum by Danfoss
a Dimensions
1-3/4 in
Compatible Hose ID
1/4 in
Connection Size 1
1/4 in
Connection Size 2
3/8 in
Connection Type
Hose, Male SAE ORB
Connection Type 1
Hose
Connection Type 2
Male SAE ORB
Construction Style
Crimp
Cut-Off Factor
0.856 in
Dimensions
1-3/4 in L
End Connection Torque
23 to 24 lb-ft
End Gender 1
Male
End Size 1
9/16 in
Finish
Dura-Kote™
Fitting Type
Hose Fitting
For Use With
3TR18CT, 3TR8, 3TR8N, 3TR7 and 3TR7N Series Hoses
Hex Size
11/16 in
Hose Dash Size
04
Inside Diameter
0.17 in
Material
Steel
Material Construction
Carbon Steel
Seal Material
NBR
Series
4T Series
Thread Sealant
Without Thread Sealant
Thread Size
9/16-18
Thread Type
UNF

Product Questions & Answers (1)

Question by: Ralph B on May 28, 2025, 9:55 PM
What kind of metal is this fitting made out of?
Answer by: Customer Support on May 30, 2025, 3:50 PM
It's constructed from carbon steel, so it's plenty strong for hydraulic applications.
