Fitting (Perm) Thermo SAE 37

Ask A Question

Description & Features

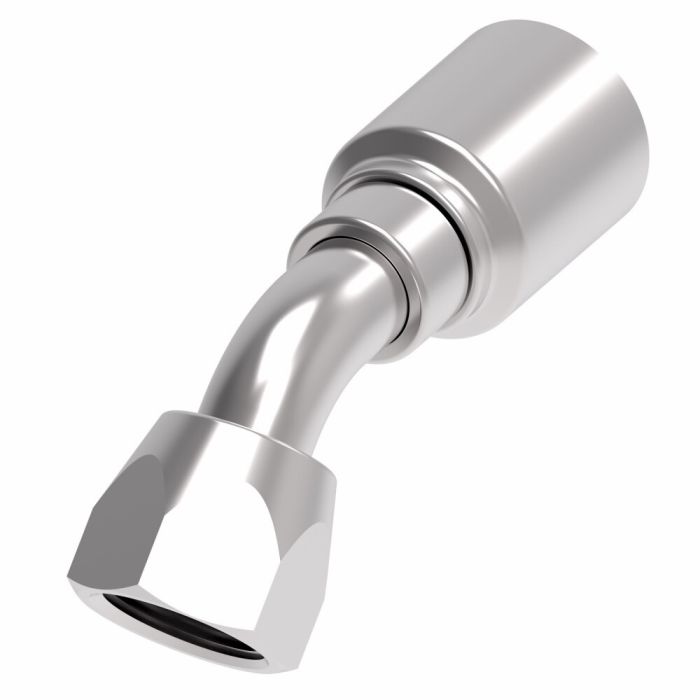

This carbon steel fitting features a JIC 37° female end and a line/hose/tube connection. It is designed to deliver performance and maximum uptime with an innovative design to extend hose assembly life. The fitting (Perm) Thermo SAE 37 features Dura-Kote plating for superior corrosion resistance.

This Aeroquip fitting assembly has a 0.75" End 1 size and a -8 hose dash size. It has a 0.5500" drop dimension and a 0.875" hex size 2.

SKU: 4TA8FJA8

Supplier Part Number (MPN): 4TA8FJA8

Alternate Part Numbers: 90308-085540-0, 90H08-085540-0

Specifications

Brand
Synflex Optimum by Danfoss
a Dimensions
2-3/4 in
Compatible Hose ID
1/2 in
Connection Size 1
1/2 in
Connection Size 2
1/2 in
Connection Type
Female JIC Swivel, Hose
Connection Type 1
Hose
Connection Type 2
Female 37 deg JIC Swivel
Construction Style
Crimp
Cut-Off Factor
1.66 in
Drop Dimensions
0.55 in
End Connection Torque
35 to 46 lb-ft
End Gender 1
Female
End Size 1
3/4 in
Finish
Dura-Kote™
Fitting Type
45 deg Elbow
For Use With
3TR18CT, 3TR8, 3TR8N, 3TR7 and 3TR7N Series Hoses
Hex Size
7/8 in
Hose Dash Size
08
Inside Diameter
0.37 in
Material
Steel
Material Construction
Carbon Steel
Series
4T Series
Thread Sealant
Without Thread Sealant
Thread Size
3/4-16
Thread Type
UNF

Product Questions & Answers (1)

Question by: Glen G on May 7, 2025, 7:11 AM
What size is the hose end on this fittin'?
Answer by: Customer Support on May 8, 2025, 1:24 PM
The hose dash size for this fitting is -8.
