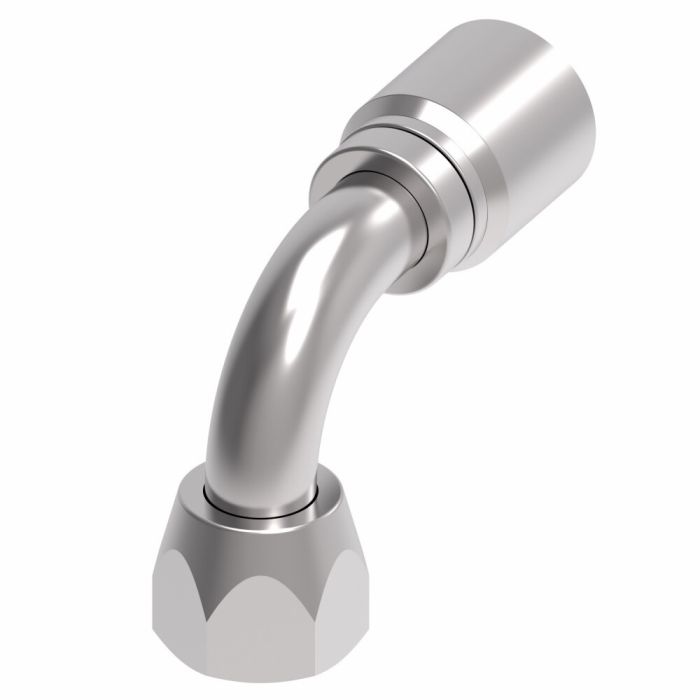

Aeroquip Fitting Perm Thermo

Description & Features

The Aeroquip Fitting Perm Thermo from Danfoss Power Solutions is engineered to extend hose assembly life. Its innovative design ensures maximum uptime and delivers reliable performance. This fitting is constructed from durable carbon steel providing a robust solution for various industrial applications.

Equipped with Dura-Kote plating it offers superior corrosion resistance significantly enhancing its longevity. This fitting features a JIC 37 female swivel at one end and a hose connection at the other with an end size of 0.75 inches.

Designed with precision it does not require calibration or adjustment ensuring ease of installation and maintenance. The fitting has a drop dimension of 1.5400 and a hex size of 0.875 making it compatible with several hydraulic systems.

Supplier Part Number: 4TA8FJB6

Specifications

Alternate Part Numbers Alternate Part Number MINO-00925X04270	Drop Dimension 1.54	Brand Danfoss Power Solutions (II LLC Aeroquip)	Brand Aeroquip	Pack Size 1.00	UOM EA	End Gender 1 13553	End Size 1 0.75	End Type 1 JIC 37	End Type 2 Line/Hose/Tube	Features Dura-Kote plating for superior corrosion resistance\|Innovative design to deliver performance and maximum uptime\|System engineered to extend hose assembly life	Hex Size 2 0.88	Hose Dash Size -6	ICC Hose Fittings	Item Type Fitting Assembly	Language English	Net Pack Quantity Units EA	Product Material Carbon Steel	Product Width 0.96	Sub Brand None	Supplier Part Number 4TA8FJB6	Product Weight 0.23 lbs

Product Questions & Answers (2)

Question by: Ralph O on Dec 21, 2025, 12:31 PM

Does this fitting need any kind of calibration or torque setup before putting it to work, or does it just go on straight?

Answer by: Customer Support on Dec 23, 2025, 6:13 AM

No calibration or adjustment needed on this one. It's ready to install as-is, which makes it a pretty easy swap into most hydraulic assemblies. The JIC 37 female swivel end connects to your line on one side, and the hose end takes a -6 dash size hose. Hex size is 0.875, so standard wrenching gets you there without any fuss.

Question by: Pete C on Mar 14, 2026, 12:50 PM

got a hose with a -6 end, is this the right fitting for it or am i off a size

Answer by: Customer Support on Mar 16, 2026, 6:47 AM

For hose sizing, it matches a -6 hose dash size. On the threaded end, it is a JIC 37 degree female swivel with a 0.75 inch end size, so you will want that to line up with the JIC male it is mating to.
