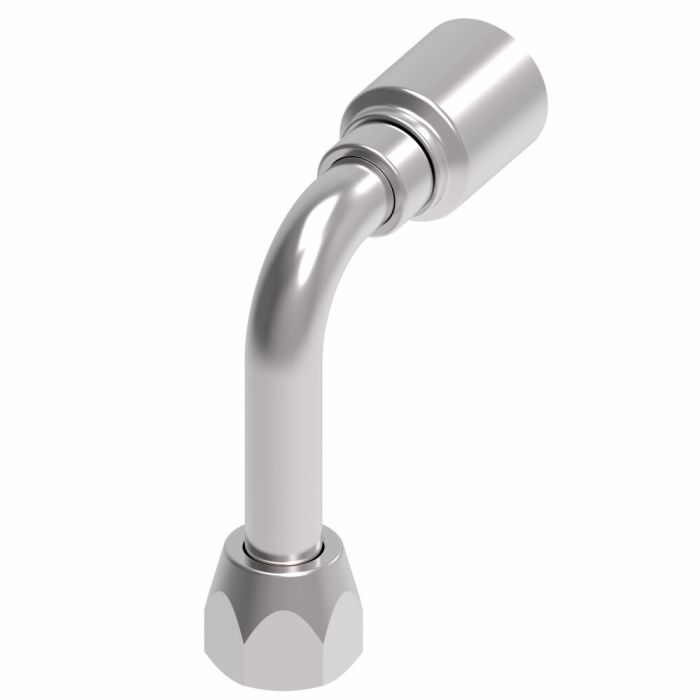

Designed for JIC 37° female swivel connections, this 90° long drop elbow fitting is part of the Aeroquip 4T Series crimp hose fitting line, engineered for compatibility with Synflex Optimum thermoplastic hose assemblies. Constructed from carbon steel with Dura-Kote plating, it provides reliable corrosion resistance in demanding hydraulic environments.
The Fitting (Perm) Thermo SAE 37 suits -6 dash size hose applications, with a 0.75 in. end size, 0.88 in. hex, and a 2.88 in. drop dimension. The long drop elbow geometry accommodates routing constraints where standard elbows fall short. As a permanent crimp assembly fitting, it integrates into system-engineered hose assemblies designed to extend service life and maximize uptime.
SKU: 4TA8FJC6
Supplier Part Number (MPN): 4TA8FJC6
|
Alternate Part Numbers
MINO-00803X00774
|
Drop Dimension
2.88
|
Brand
Danfoss Power Solutions (II LLC Aeroquip)
|
Brand
Aeroquip
|
Pack Size
1.00
|
UOM
EA
|
End Gender 1
13553
|
End Size 1
0.75
|
End Type 1
JIC 37
|
End Type 2
Line/Hose/Tube
|
Features
Dura-Kote plating for superior corrosion resistance|Innovative design to deliver performance and maximum uptime|System engineered to extend hose assembly life
|
Hex Size 2
0.88
|
Hose Dash Size
-6
|
ICC
Hose Fittings
|
Item Type
Fitting Assembly
|
Language
English
|
Product Material
Carbon Steel
|
Product Width
0.96
|
Sub Brand
None
|
Supplier Part Number
4TA8FJC6
|
Product Weight
0.26 lbs
|
