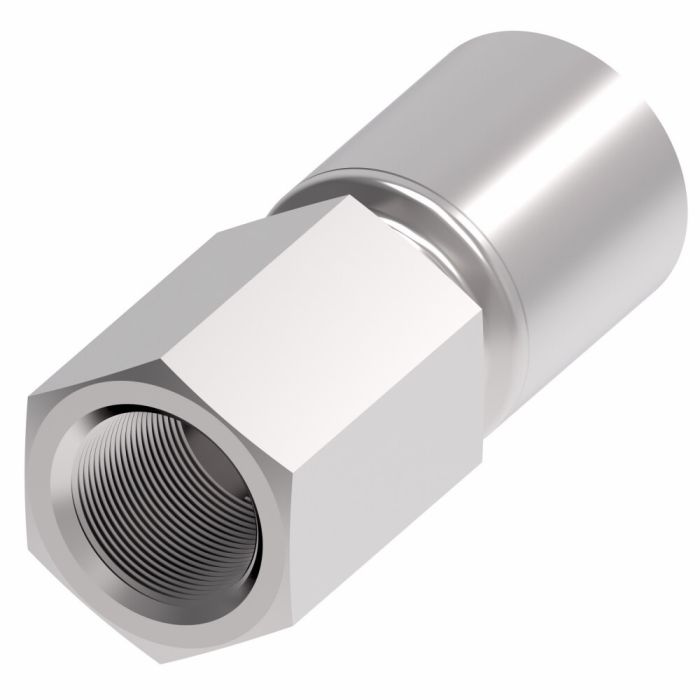

Fitting (Perm) Thermo FemalePipe

Ask A Question

Description & Features

Designed for use with Aeroquip 4T Series crimp hose assemblies, the Fitting (Perm) Thermo Female Pipe provides a 1/2 in. NPTF female pipe connection on one end and mates to -8 dash size hose on the other. Constructed from carbon steel, it features Dura-Kote plating to resist corrosion in demanding hydraulic environments.

The fitting is engineered as part of a system-matched assembly approach, supporting consistent sealing performance and extended hose assembly service life. Weighing 0.43 lb with a profile width of 1.09 in., it is compact and suited for installations where space and weight are considerations.

SKU: 4TA8FP8

Supplier Part Number (MPN): 90H08-082000-0

Specifications

Brand
Synflex Optimum by Danfoss
a Dimensions
2.74 in
Compatible Hose ID
1/2 in
Connection Size 1
1/2 in
Connection Size 2
1/2 in
Connection Type
FNPT, Hose
Connection Type 1
Hose
Connection Type 2
Female NPTF
Construction Style
Crimp
Cut-Off Factor
1.65 in
Dimensions
2.74 in L
End Gender 1
Female
End Size 1
1/2 in
Finish
Dura-Kote™
Fitting Type
Hose Fitting
For Use With
3TR18CT, 3TR8, 3TR8N, 3TR7 and 3TR7N Series Hoses
Hex Size
1.06 in
Hose Dash Size
08
Inside Diameter
0.38 in
Material
Steel
Material Construction
Carbon Steel
Series
4T Series
Thread Sealant
Without Thread Sealant
Thread Size
1/2-14
Thread Type
NPTF

Product Questions & Answers (1)

Question by: Merle J on Sep 30, 2025, 6:42 AM
So this fitting here, it's made for them Aeroquip 4T hoses, right? Just want to make sure before I order.
Answer by: Customer Support on Oct 2, 2025, 6:07 AM
it’s designed specifically for use with Aeroquip 4T Series crimp hose assemblies. That system-matched approach is what gives you the consistent sealing and longer hose life.
